DTC P2B61:00 [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)]

id0102q5168000

Note

•  To determine the malfunctioning part, proceed with the diagnostics from “Function Inspection Using M-MDS”.

Details On DTCs

DESCRIPTION	Coolant control valve position sensor circuit range/performance
DETECTION CONDITION	Determination conditions	•  The coolant control valve control duty value is 89% or more for a continuous 2 s.
	Drive cycle	•  1
	Self test type	•  CMDTC self test, KOEO self test, KOER self test
	Sensor used	•  Coolant control valve position sensor
FAIL-SAFE FUNCTION	•  Inhibits engine-stop by operating the i-stop function. •  PCM restricts engine torque.
VEHICLE STATUS WHEN DTCs ARE OUTPUT	•  Illuminates check engine light.
POSSIBLE CAUSE	•  Coolant control valve/coolant control valve position sensor connector or terminals malfunction •  PCM connector or terminals malfunction •  Coolant control valve sticking, or foreign matter penetration •  Short to ground in wiring harness between the following terminals: ―  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW ―  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX ―  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D ―  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I ―  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG •  Coolant control valve/coolant control valve position sensor circuits are shorted to each other •  Open circuit in wiring harness between the following terminals: ―  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW ―  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX ―  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D ―  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I ―  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG •  Coolant control valve position sensor malfunction •  PCM malfunction

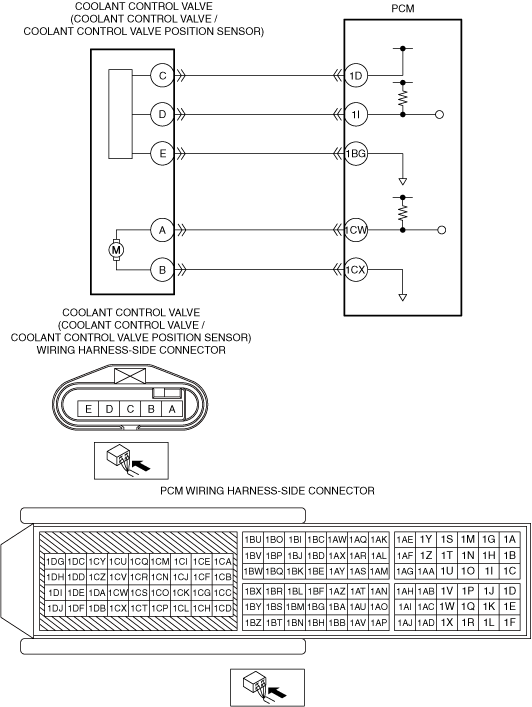

System Wiring Diagram

ac5wzw00011450

Function Explanation (DTC Detection Outline)

Repeatability Verification Procedure

1.  Warm up the engine to allow the engine coolant temperature to reach 80 °C {176 °F} or more.

Note

•  Match the engine coolant temperature in the recorded FREEZE FRAME DATA/snapshot data, the vehicle speed, and engine speed values to the best extent possible while driving the vehicle.

2.  Try to reproduce the malfunction by driving the vehicle for 5 min based on the values in the FREEZE FRAME DATA/snapshot data.

PID Item/Simulation Item Used In Diagnosis

PID/DATA monitor item table

Function Inspection Using M-MDS

STEP	INSPECTION	RESULTS	ACTION
1	PURPOSE: VERIFY RELATED REPAIR INFORMATION AVAILABILITY •  Verify related Service Bulletins and/or on-line repair information availability. •  Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. •  If the vehicle is not repaired, go to the next step.
		No	Go to the next step.
2	PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION Note •  Recording can be facilitated using the screen capture function of the PC. •  Record the FREEZE FRAME DATA/snapshot data on the repair order.	—	Go to the next step.
3	PURPOSE: VERIFY IF THERE IS PID ITEM CAUSING DRASTIC CHANGES OF ACCELERATION FLUCTUATION BY INPUT SIGNAL TO PCM •  Ignition switched ON (engine off) •  Access the following PIDs using the M-MDS: (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].) ―  ENG_CL_V_POS ―  ENG_CL_V_POS_R •  Is there any signal that is far out of specification?	Yes	Go to the next step.
		No	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.
4	PURPOSE: VERIFY CONNECTOR CONNECTIONS •  Start the engine. •  Access the following PIDs using the M-MDS: (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].) ―  ENG_CL_V_POS ―  ENG_CL_V_POS_R •  When the following parts are shaken, does the PID value include a PID item which has changed? ―  Coolant control valve	Yes	Inspect the related wiring harness and connector. •  Repair or replace the malfunctioning part.
		No	Go to Troubleshooting Diagnostic Procedure to perform the procedure from step 1.

Troubleshooting Diagnostic Procedure

―  Perform an inspection of the connectors and wiring harnesses between the coolant control valve and the PCM.

―  Perform a unit inspection of the coolant control valve.

―  Perform a unit inspection of the coolant control valve position sensor.

―  Verify that the primary malfunction is resolved and there are no other malfunctions.

STEP	INSPECTION	RESULTS	ACTION
1	INSPECT INSTALLATION OF COOLANT CONTROL VALVE •  Inspect installation of coolant control valve. •  Is the coolant control valve installed securely?	Yes	Go to the next step.
		No	Retighten the coolant control valve, then go to Step 7. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
2	INSPECT COOLANT CONTROL VALVE CIRCUIT FOR SHORT TO GROUND •  Verify that the coolant control valve/coolant control valve position sensor and PCM connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side) and body ground: ―  Coolant control valve/coolant control valve position sensor terminal A ―  Coolant control valve/coolant control valve position sensor terminal B ―  Coolant control valve/coolant control valve position sensor terminal C ―  Coolant control valve/coolant control valve position sensor terminal D ―  Coolant control valve/coolant control valve position sensor terminal E •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: •  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW •  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX •  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D •  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I •  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to power supply. Go to Step 7.
		No	Go to the next step.
3	INSPECT COOLANT CONTROL VALVE/COOLANT CONTROL VALVE POSITION SENSOR CIRCUITS FOR SHORT TO EACH OTHER •  Verify that the coolant control valve/coolant control valve position sensor and PCM connectors are disconnected. •  Inspect for continuity between coolant control valve/coolant control valve position sensor terminals A, B, C, D and E (wiring harness-side). •  Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: •  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW •  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX •  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D •  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I •  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has a short to each other. Go to Step 7.
		No	Go to the next step.
4	INSPECT COOLANT CONTROL VALVE CIRCUIT FOR OPEN CIRCUIT •  Verify that the coolant control valve/coolant control valve position sensor and PCM connectors are disconnected. •  Inspect for continuity between the following terminals (wiring harness-side): ―  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW ―  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX ―  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D ―  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I ―  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG •  Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: •  Coolant control valve/coolant control valve position sensor terminal A—PCM terminal 1CW •  Coolant control valve/coolant control valve position sensor terminal B—PCM terminal 1CX •  Coolant control valve/coolant control valve position sensor terminal C—PCM terminal 1D •  Coolant control valve/coolant control valve position sensor terminal D—PCM terminal 1I •  Coolant control valve/coolant control valve position sensor terminal E—PCM terminal 1BG If there is a common connector: •  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. •  Repair or replace the malfunctioning part. If there is no common connector: •  Repair or replace the wiring harness which has an open circuit. Go to Step 7.
5	INSPECT COOLANT CONTROL VALVE •  Inspect the coolant control valve. (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) •  Is there any malfunction?	Yes	Replace the coolant control valve, then go to Step 7. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
		No	Go to the next step.
6	INSPECT COOLANT CONTROL VALVE POSITION SENSOR •  Inspect the coolant control valve position sensor. (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) •  Is there any malfunction?	Yes	Replace the coolant control valve, then go to the next step. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
		No	Go to the next step.
7	VERIFY DTC TROUBLESHOOTING COMPLETED •  Always reconnect all disconnected connectors. •  Clear the DTC from the PCM memory using the M-MDS. (See CLEARING DTC [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].) •  Implement the repeatability verification procedure. (See Repeatability Verification Procedure.) •  Has DTC P2B61:00 been recorded, or is the PID ENG_CL_V_POS_R value within 2 ° compared to the PID ENG_CL_V_POS value?	Yes	Repeat the inspection from Step 1. •  If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) Go to the next step.
		No	Go to the next step.
8	VERIFY AFTER REPAIR PROCEDURE •  Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].) •  Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [PCM (SKYACTIV-G 1.3, SKYACTIV-G 1.5)].)
		No	DTC troubleshooting completed.
