TIMING CHAIN, CHAIN TENSIONER [SKYACTIV-D 1.5]

id0110q2001500

Purpose, Function

Timing chain

•  The timing chain transmits the rotation force of the crankshaft to the camshaft to perform the rotation timing of the crankshaft and camshaft.

Chain tensioner

•  The chain tensioner constantly maintains the timing chain tension and the timing chain operation is stabilized.

Construction

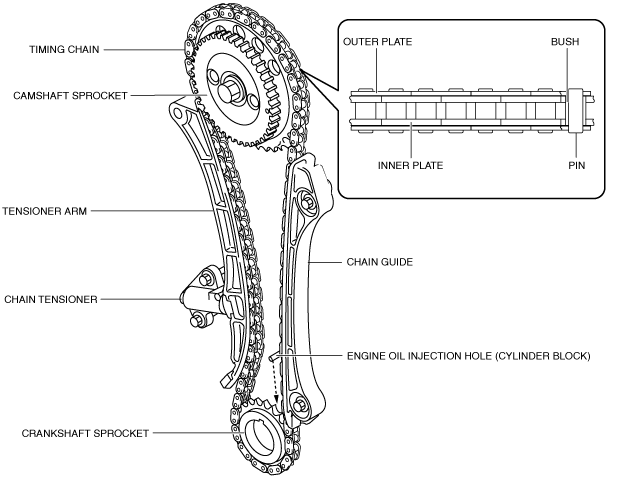

Timing chain

•  The timing chain is located between the camshaft sprocket and crankshaft sprocket.

•  The lubrication of the timing chain and each sprocket is performed by the engine oil supplied from the cylinder block.

am2zzn00002715

Chain tensioner

•  The chain tensioner is located on the cylinder block (engine front part).

•  An oil pressure type chain tensioner has been adopted for the chain tensioner.

OPERATION

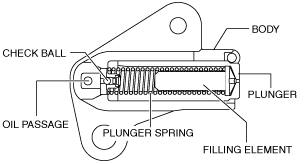

Chain tensioner

•  Tension fluctuation on the timing chain is suppressed by hydraulic pressure and tension is held constant by spring force.

am2zzn00002716
