REAR OIL SEAL REPLACEMENT [SKYACTIV-D 1.5]


id0110q2800900

1.  Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [F66M-R (SKYACTIV-D 1.5)] (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (ATX).)

2.  Remove the dual-mass flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [EW6A-EL] (ATX).)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

adejjw00012819

1
Rear oil seal


Rear Oil Seal Removal Note

1.  Cut the rear oil seal lip using a utility knife.

2.  Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

am2zzw00012768


Rear Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new rear oil seal.

2.  Insert the rear oil seal into the cylinder block by hand.

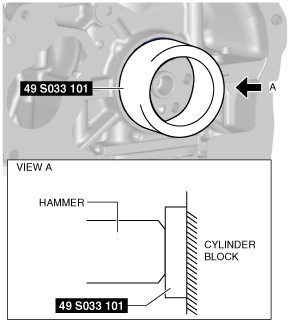

3.  Tap the rear oil seal in evenly using the SST and a hammer.

am2zzw00010153
am2zzw00015128

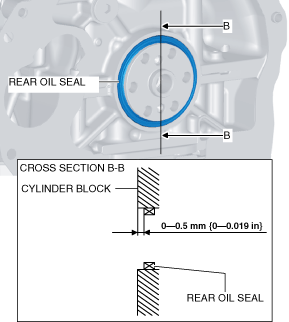

Rear oil seal press on amount
0—0.5 mm {0—0.019 in} from edge surface of cylinder block
