CYLINDER HEAD GASKET [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0110q3000300
Purpose, Function
• The cylinder head gasket is installed between the cylinder head and cylinder block to prevent leakage of air-fuel mixture, combustion gas, engine oil, and engine coolant.
Construction

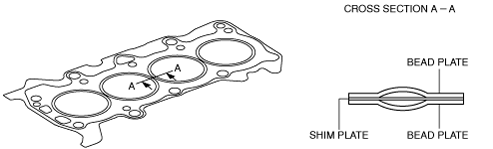

• A three-layer type metal gasket has been adopted for the cylinder head gasket.
