ENGINE FRONT COVER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0110q3000900
Purpose, Function
• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign matter penetration.
Construction
• The engine front cover is located in front of the engine.
• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.
• The engine front cover has the following parts shown in the figure.

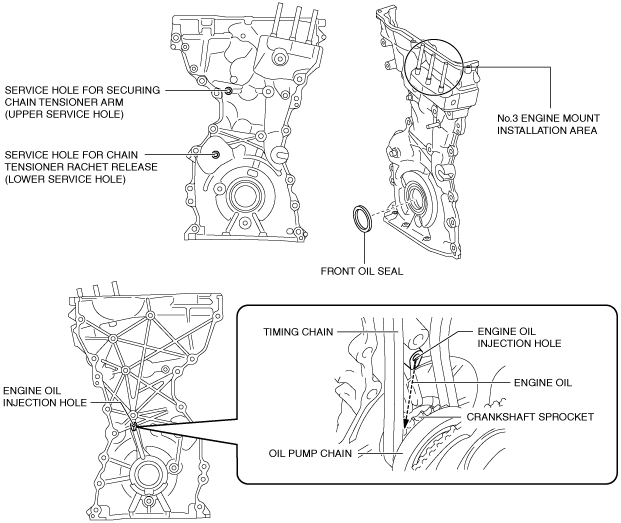

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

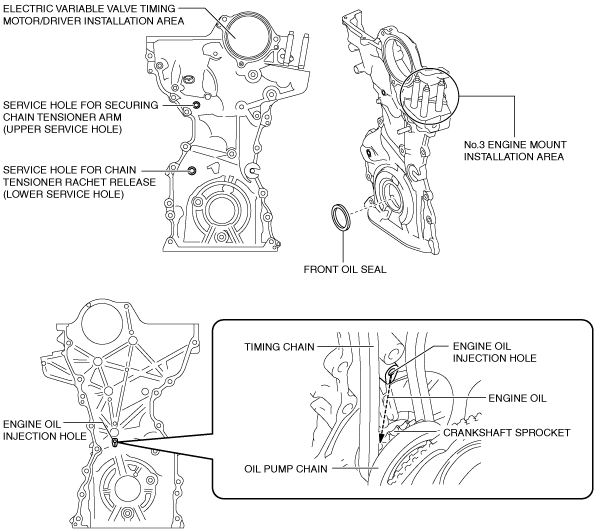

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)
