VALVE MECHANISM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]


id0110q3001200


Outline

•  A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.

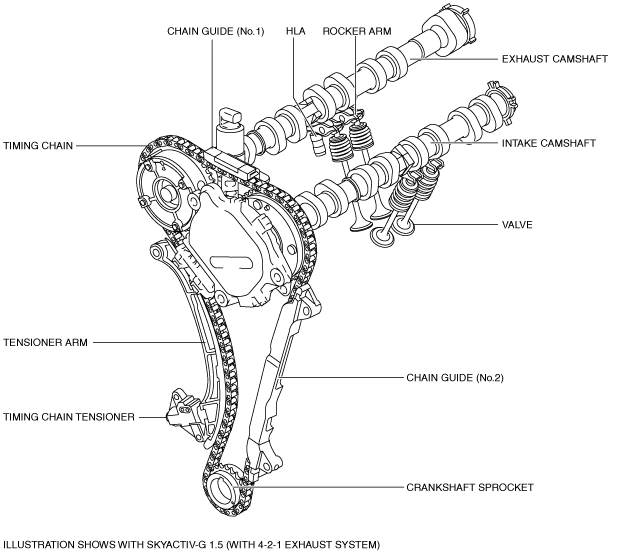

Structural View

am2zzn00003038
