HYDRAULIC VARIABLE VALVE TIMING ACTUATOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0110q3001700

Without coolant control valve (4-1 exhaust system)

Purpose, Function

•  The hydraulic variable valve timing actuator operates using the engine oil supplied by the OCV, and changes the phases of the intake camshaft (valve timing).

•  The hydraulic variable valve timing actuator cannot be disassembled because it is a precision unit.

Construction

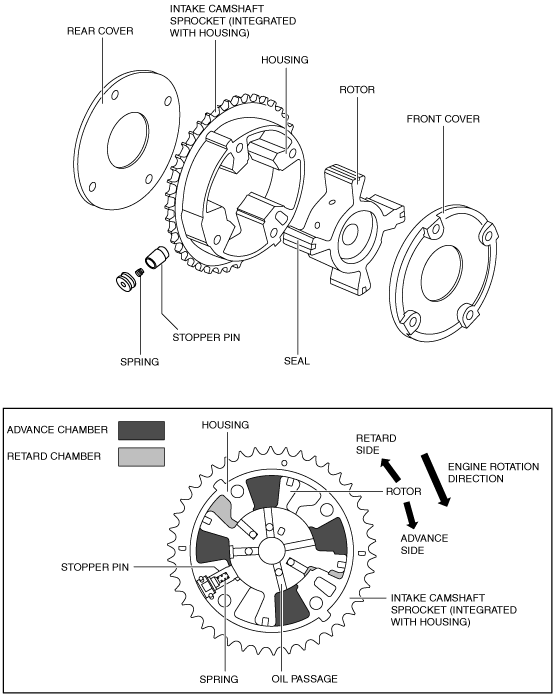

•  The hydraulic variable valve timing actuator consists of the following parts:

am2zzn00003053

―  The intake camshaft sprocket is integrated with the housing.

―  The rotor and the intake camshaft are engaged and they rotate together.

―  There are two types of hydraulic chambers; advance chamber and retard chamber, between the housing and the rotor.

―  When the rotor (intake camshaft) is in the maximum retard position, the stopper pin is engaged with the rotor depression.

Operation

Fixed mode

•  The stopper pin inside the variable valve timing actuator is engaged with the depression of the rotor positioned in the maximum retard position by the spring force.

•  The intake camshaft sprocket and the intake camshaft rotate as a single unit.

am2zzn00003054

Advance mode

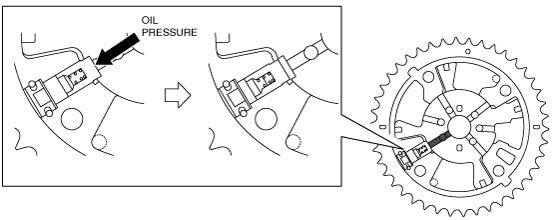

•  Engine oil is led to the oil passage by the OCV, and the oil pressure is applied to the stopper pin. As a result, stopper pin is released.

am2zzn00003055

•  When the stopper pin is released, oil pressure is applied to the advance chamber. As a result, the rotor rotates in the advance direction relative to the intake camshaft sprocket, and the valve timing is advanced.

am2zzn00003486

Retard mode

•  The oil passage is switched by the OCV and the oil pressure is applied to the retard chamber. As a result, the rotor rotates in the retard direction relative to the intake camshaft sprocket, and the valve timing is retarded.

am2zzn00003487

Hold mode

•  The oil pressure is applied from the OCV to both the advance and retard chambers. As a result, the relative angle of the rotor and the intake camshaft sprocket is not changed and the valve timing is held.

am2zzn00003488
