CYLINDER HEAD COVER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]


id0110q3105000


Purpose, Function

•  The cylinder head cover prevents foreign matter penetration and engine oil spatter.
•  The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.

Construction

•  The lightweight cylinder head cover is made of hard plastic with excellent noise absorption.
•  The cylinder head cover has the following parts:

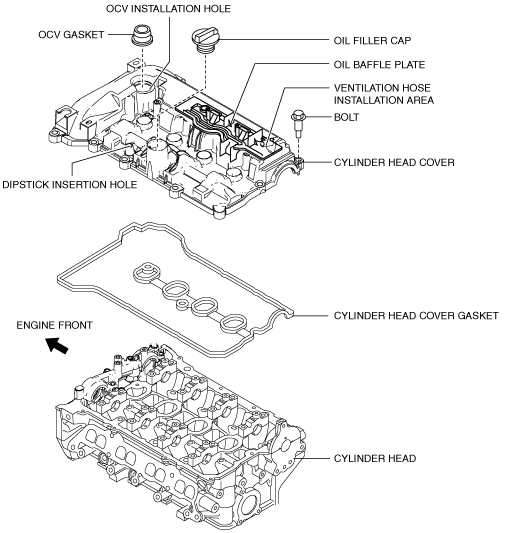

Without coolant control valve (4-1 exhaust system)

am2zzn00003075

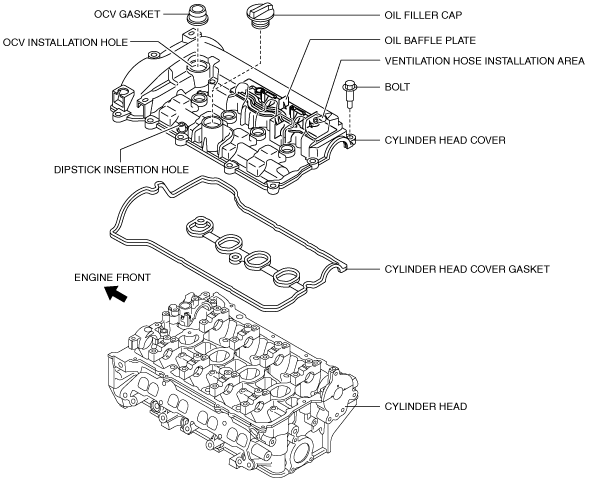

Without coolant control valve (4-2-1 exhaust system), with coolant control valve

am2zzn00003076
