ELECTRIC VARIABLE VALVE TIMING RELAY [SKYACTIV-G 1.5]

id0110q31985q6

Without coolant control valve (4-2-1 exhaust system), with coolant control valve

Purpose, Function

•  The electric variable valve timing actuator relay operates by the battery voltage after main relay energization, and supplies battery voltage to the electric variable timing motor/driver.

Construction

•  The electric variable valve timing actuator relay is located on the relay and fuse block.

am2zzn00003077

Operation

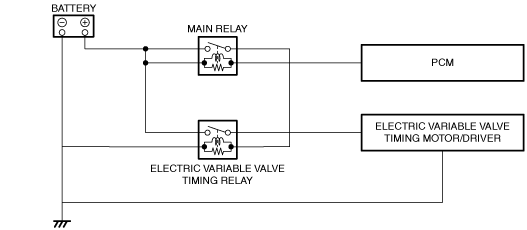

•  The coil of the electric variable valve timing actuator relay is energized and electromagnetic power is generated by the battery voltage from the main relay supplied to the coil. The contact point turns on by this electromagnetic power, and battery voltage is supplied to the electric variable valve timing motor/driver.

am2zzn00003078

Fail-safe

DTC	Fail-safe
P0010:00	•  Stops activation of the electric variable valve timing driver.
