OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0110q3801300

Warning

•   A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

3.  Remove the following parts. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Without coolant control valve (4-1 exhaust system)

•  Ignition coils

Without coolant control valve (4-2-1 exhaust system), With coolant control valve

•  Ignition coil/ion sensors

4.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

Without coolant control valve (4-1 exhaust system)

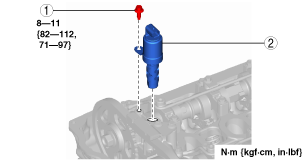

am2zzw00014280

1	OCV installation bolt
2	OCV

Without coolant control valve (4-2-1 exhaust system), With coolant control valve

am3uuw00008882

1	OCV installation bolt
2	OCV
