OIL FILTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0111q3002200
Purpose, Function
• Engine oil is filtered by passing engine oil through the oil filter element.
Construction

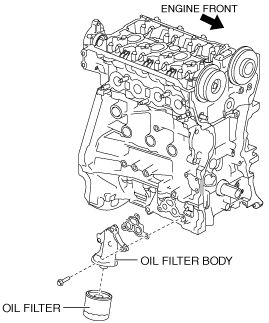

• The oil filter is located on the right side surface of the cylinder block.
• A spin-on type (full-flow type) oil filter has been adopted.
• The bypass valve is equipped as a detour if the oil filter element becomes clogged.
