OIL STRAINER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0111q3002400
Purpose, Function
• The oil strainer suctions the engine oil in the oil pan using the oil pump vacuum. The engine oil is filtered by the internal filter at that time.

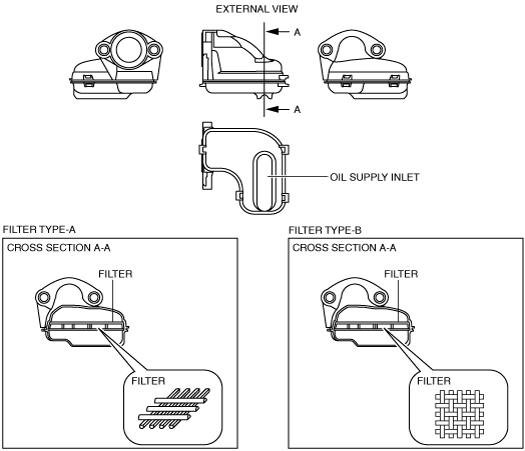

Construction

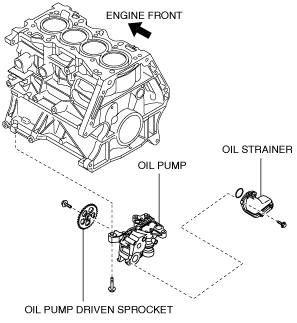

• The oil strainer is located at the oil pump inlet.
• The oil strainer has a filter in the inside.
