OIL SHOWER PIPE [SKYACTIV-G 1.3, SKYACTIV-G 1.5]


id0111q3002800


Outline

•  Mechanical resistance loss has been reduced through structural changes to achieve optimum fuel economy. An oil shower pipe has been adopted as a part of this structural change.

Purpose, Function

•  The oil shower pipe injects engine oil to lubricate the contact points of the cam and rocker arm. As a result, wear resistance of sliding part is reduced.

Construction

•  The oil shower pipe is located on the camshaft cap.
am2uun00001122

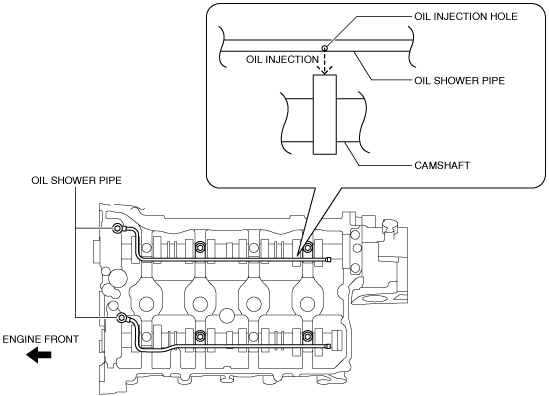

•  The oil shower pipe utilizes the engine oil injection holes at the top of the camshaft.
am2uun00001123

Operation

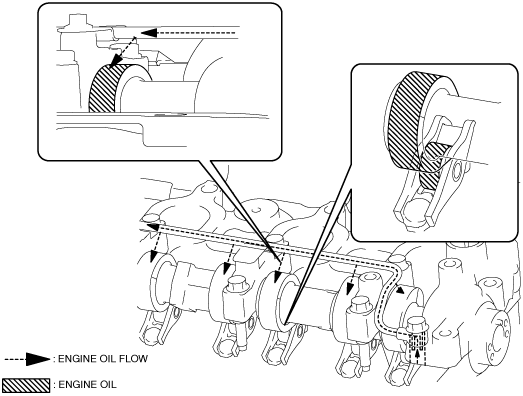

•  The oil shower pipe injects engine oil from the engine oil injection holes using hydraulic pressure.
am2zzn00003877
