COOLING FAN COMPONENT [SKYACTIV-D 1.5]

id0112q2003200

Purpose, Function

• The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

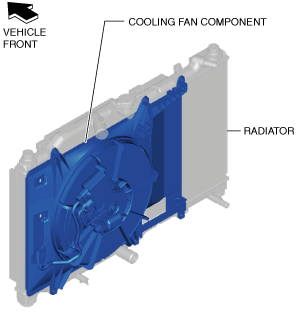

Structural View

am2zzn00003220

Operation

• For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-D 1.5].)

Fail-safe

• Function not equipped.
