•  The radiator disperses the engine coolant heat flowing internally by receiving air flow blown against the vehicle while it is driven or air flow produced by the cooling fan.

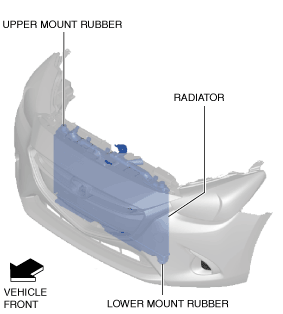

•  The radiator is located at the front part in the engine compartment.

•  Four mounting rubbers are utilized to decrease vibration.

am2zzn00003226

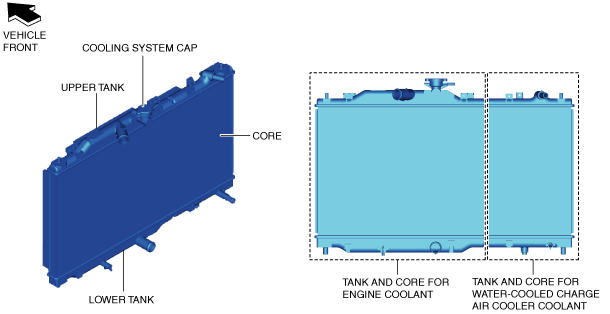

•  A down-flow radiator with corrugated fins has been adopted.

•  The radiator tanks are made of plastic and the core is made of aluminum for weight reduction.

•  The inside of the tank and core is divided into two sections; one section is for the engine coolant and the other is for the water-cooled charge air cooler coolant.

am2zzn00003227
