COOLING FAN COMPONENT [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0112q3003200


Purpose, Function

•  The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

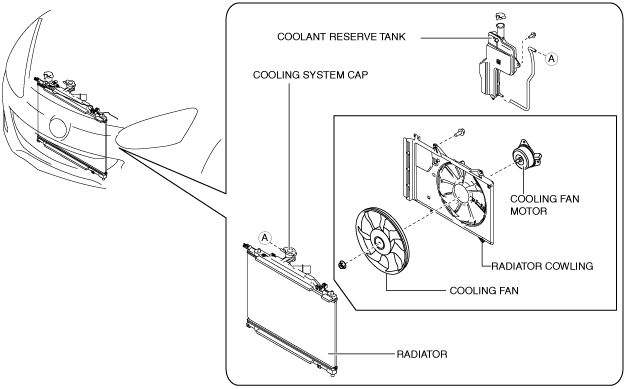

Structural View

am2zzn00002669

Operation

•  For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Fail-safe

•  Function not equipped.
