AIR CLEANER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0113q1003500
Purpose, Function
• The air cleaner prevents engine internal damage caused by the penetration of dust or foreign matter.
Construction

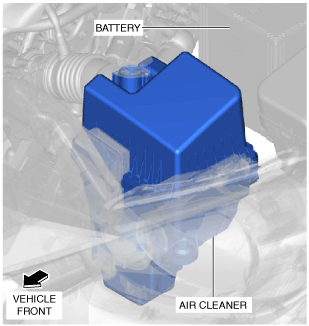

• The air cleaner is located in front of the vehicle battery.

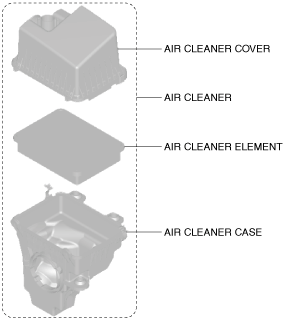

• The air cleaner consists of the air cleaner case, air cleaner cover, and air cleaner element.
• Non-woven fabric (dry type) air cleaner element has been adopted to remove dust and foreign material in the intake air.
