THROTTLE BODY [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0113q1003600


Purpose, Function

•  The throttle body opens/closes the throttle valve to adjust the amount of air supplied to the cylinders.
•  Opens/closes the throttle valve according to the control signal from the PCM.

Construction

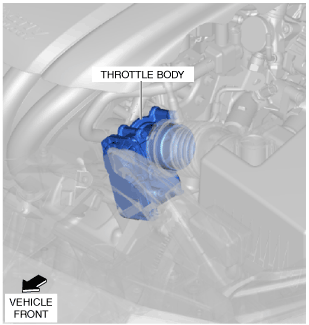

•  The throttle body is located on the intake manifold.
am2zzn00003127

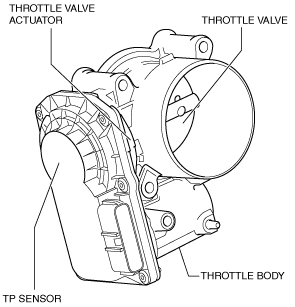

•  The throttle body consists of a throttle valve, throttle valve actuator, and throttle position sensor.
am3uun00002113
•  For the throttle position sensor, refer to CONTROL SYSTEM. (See THROTTLE POSITION (TP) SENSOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Operation

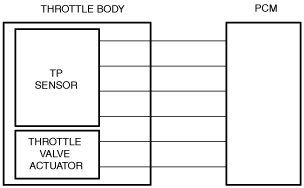

•  The throttle valve actuator opens/closes the throttle valve according to the control signal from the PCM. If there is a malfunction in the throttle valve actuator, the throttle valve is opened approx. 8 degrees by the return spring in the throttle body.
ac5uun00001069
•  For the drive-by-wire control, refer to CONTROL SYSTEM. (See DRIVE-BY-WIRE CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Fail-safe

DTC

Fail-safe
P2101:00
•  Stops the idle air control.
•  Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for minimum driveability.
P2107:00
P2110:00
P2112:00
P2119:00
•  Restricts the upper limit of the engine speed.
