AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-D 1.5]

id0113q2800200

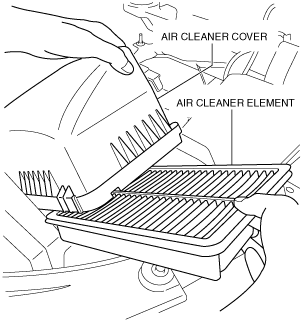

1.  Remove the air cleaner element as shown in the figure.

ac5wzw00004712

2.  Install in the reverse order of removal. (See Air Cleaner Cover Installation Note.)

Air Cleaner Cover Installation Note

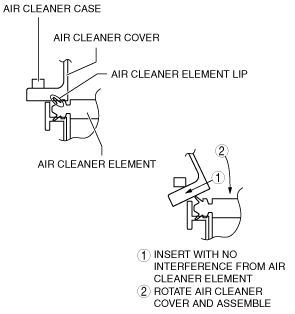

1.  Install the air cleaner cover as shown in the figure.

am2zzw00012044

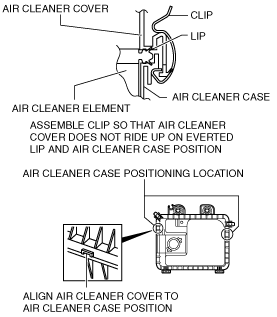

2.  Install the air cleaner cover and air cleaner case for clip as shown in the figure.

am2zzw00012045
