FUEL TANK [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0114q1104100
Purpose, Function
• The fuel tank stores fuel safely.
Construction

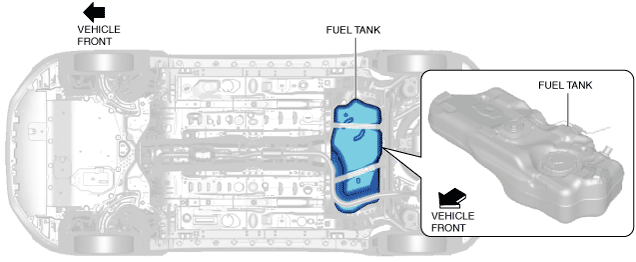

• The fuel tank is located under the rear seat.
am2zzn00003145
• The fuel tank is made of plastic.

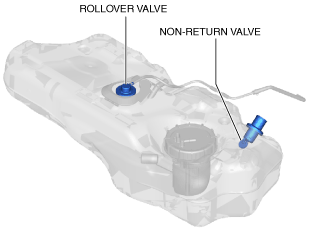

• The following parts are integrated in the fuel tank.
― Non-return valve
(See
NON-RETURN VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
.)
― Rollover valve
(See
ROLLOVER VALVE [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
.)
am2zzn00003146
