FUEL FILTER [SKYACTIV-D 1.5]


id0114q2707000


Purpose, Function

•  The fuel filter removes foreign matter and dirt in the fuel.

Construction

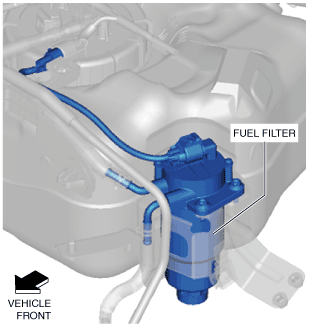

•  The fuel filter is installed between the fuel tank and the supply pump and it is located next to fuel tank.
am2zzn00003282
•  The fuel filter consists of the fuel warmer and the cartridge.
am2zzn00003283
