EXHAUST SYSTEM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0115q1125800

Outline

SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system)

• By integrating the exhaust manifold and the catalytic converter (WU-TWC), the distance from the combustion chamber to the catalytic converter has been shortened. Because the high temperature exhaust gas passes the catalytic converter, early activation of the catalytic converter improves exhaust gas purification.

SKYACTIV-G 1.5 (with 4-2-1 exhaust system)

• A high compression ratio has been realized by adopting 4-2-1 exhaust pipes and reducing residual gas in the cylinders.

• The loop structure of the exhaust pipes for the 4-2-1 system takes up less space.

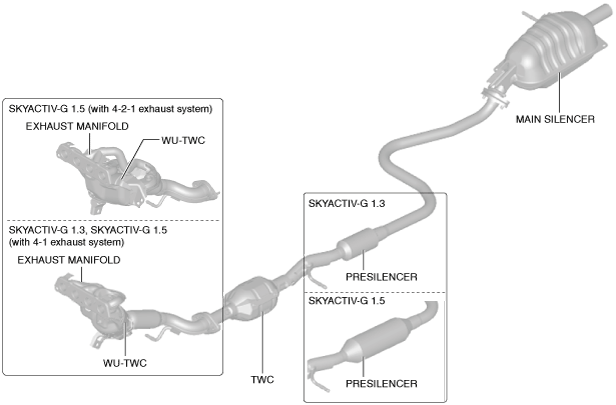

Structural View

am2zzn00003885

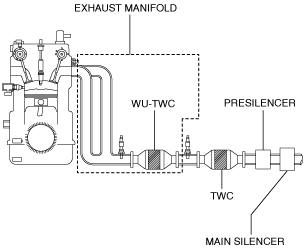

System Diagram

am2zzn00003164

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

(See MAIN SILENCER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Presilencer

(See PRESILENCER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

TWC

(See CATALYTIC CONVERTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

WU-TWC

Exhaust manifold

(See EXHAUST MANIFOLD [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Presilencer	(See PRESILENCER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
WU-TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
