CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0116q1096400

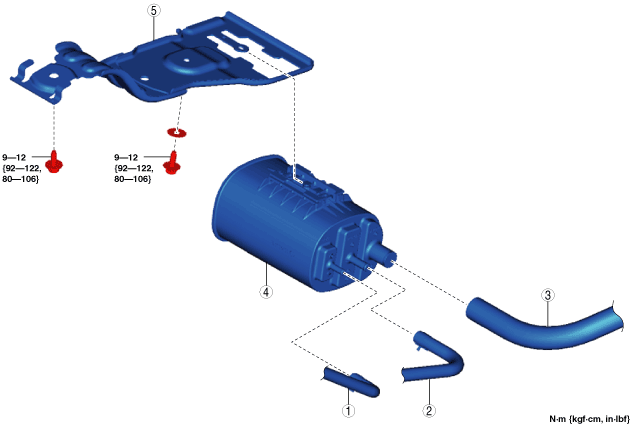

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am2zzw00011945

1	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
2	Evaporative hose No.2 (See Evaporative Hose No.2 Installation Note.)
3	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
4	Charcoal canister (See Charcoal Canister Removal Note.)
5	Charcoal canister bracket

Charcoal Canister Removal Note

1.  Remove the charcoal canister and charcoal canister bracket as a single unit.

2.  Release the lock as shown in the figure.

am2zzw00013524

3.  Remove the charcoal canister.

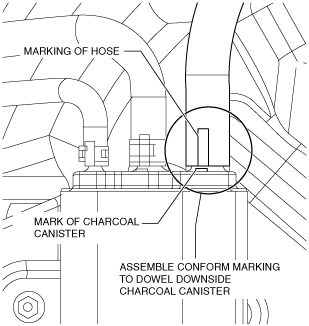

Evaporative Hose No.3 Installation Note

1.  Connect the evaporative hose No.3 as shown in the figure.

am2zzw00011947

Evaporative Hose No.2 Installation Note

1.  Connect the evaporative hose No.2 as shown in the figure.

am2zzw00011948

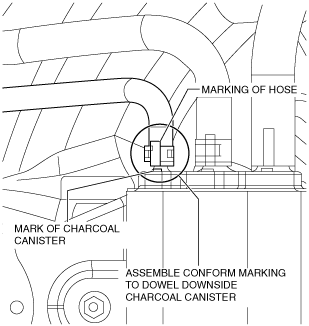

Evaporative Hose No.1 Installation Note

1.  Connect the evaporative hose No.1 as shown in the figure.

am2zzw00011949
