CATCH TANK [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0116q1174500
Purpose, Function
• The catch tank suppresses pulsation occurring when evaporative gas is inducted into the intake manifold.
Construction

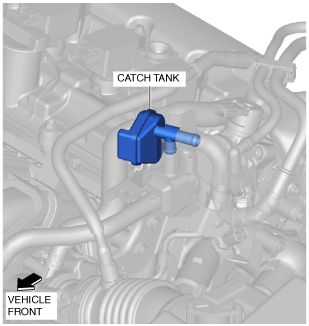

• The catch tank is located in the engine compartment.
Operation

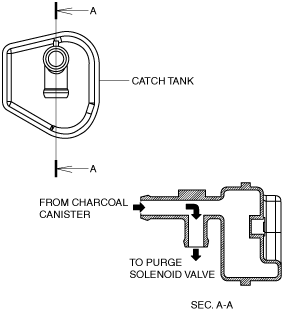

• When evaporative gas flows from the charcoal canister to the purge solenoid valve, pulsation is suppressed by passing the evaporative gas through the hollowing of the catch tank.
