PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5]
id0116q1804300
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
3. Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
4. Disconnect the high pressure fuel pump connector.
5. Disconnect the harness clip as shown in the figure.
am3uuw00011216
|

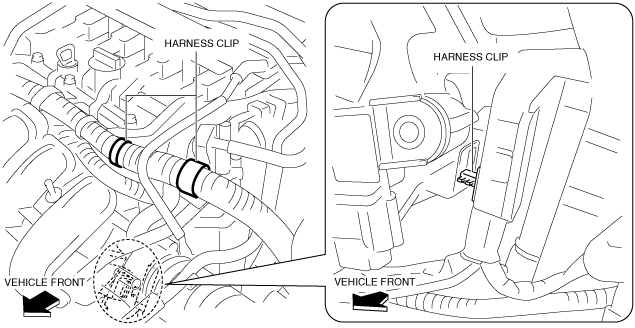

6. Disconnect the harness clip as shown in the figure.
Without coolant control valve
am2zzw00014851
|

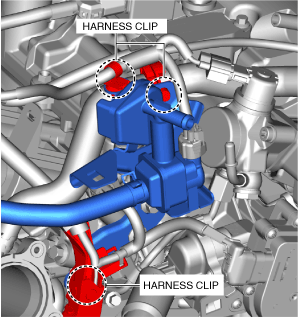

With coolant control valve
am2zzw00014852
|
7. Disconnect the vacuum hose from the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
8. Remove in the order indicated in the table.
Without coolant control valve
am3zzw00013775
|
|
1
|
Evaporative hose No.1
|
|
2
|
Catch tank
|
|
3
|
Evaporative hose No.2
|
|
4
|
Purge solenoid valve connector
|
|
5
|
Evaporative hose No.3
|
|
6
|
Purge solenoid valve bracket installation bolt
|
|
7
|
Purge solenoid valve
|

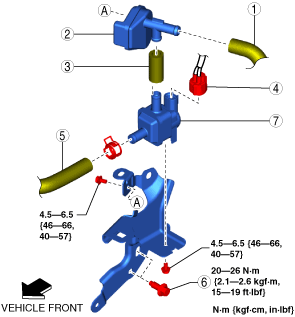

With coolant control valve
am2zzw00014853
|
|
1
|
Evaporative hose No.1
|
|
2
|
Catch tank
|
|
3
|
Evaporative hose No.2
|
|
4
|
Purge solenoid valve connector
|
|
5
|
Evaporative hose No.3
|
|
6
|
Purge solenoid valve bracket installation bolt
|
|
7
|
Purge solenoid valve
|
9. Install in the reverse order of removal.
Purge Solenoid Valve Installation Note
1. Temporarily install the purge solenoid valve to the bracket.

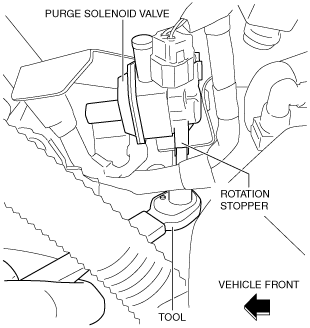

2. Lift up and tighten the purge solenoid valve as shown in the figure.
am3uuw00011219
|
Evaporative Hose No.3 Installation Note
1. Install the evaporative hose No.3 as shown in the figure.
am2zzw00012884
|
Evaporative Hose No.1 Installation Note

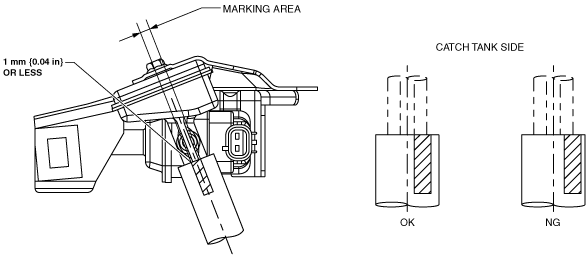

1. Install the evaporative hose No.1 as shown in the figure.
am3uuw00011221
|
