•  The rollover valve prevents fuel flow into the evaporative gas passage during sudden cornering or vehicle rollover.

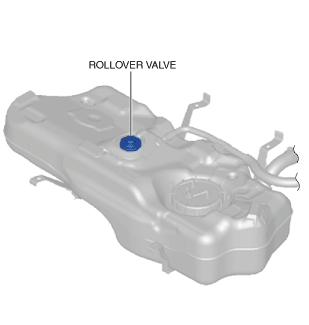

•  The rollover valve is built into the fuel tank.

am2zzn00003316

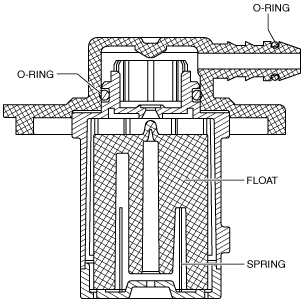

•  The rollover valve consists of a float, O-ring and spring.

am2zzn00003317

•  The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.

am2zzn00003318
