DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-D 1.5)]

id0117q60045j8


Purpose, Function

•  When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.

Construction

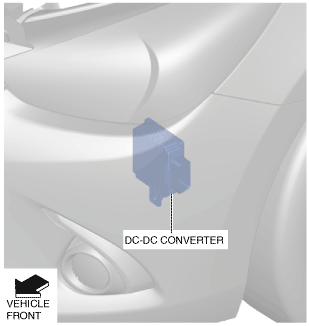

•  The DC-DC converter is located on the vehicle's left front part (lower part of front combination light).
am2zzn00003340

Operation

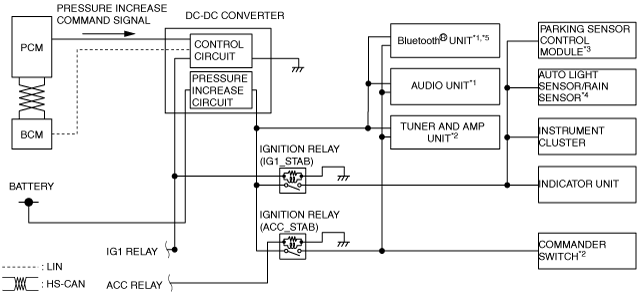

•  The battery voltage increases based on the control signal from the PCM.
am2zzn00003590
*1  :Without center display
*2  :With center display
*3  :With parking sensor system
*4  :With auto wiper system/auto light system
*5  :With Bluetooth® system
•  For details of the DC-DC converter control, refer to CONTROL SYSTEM. (See DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5].)

Fail-safe

•  Not applicable
