DC-DC CONVERTER [WITHOUT i-ELOOP (SKYACTIV-G 1.3, SKYACTIV-G 1.5)]

id0117q70045q8


Vehicle with i-stop


Purpose, Function

•  When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.


Construction

•  The DC-DC converter is located on the vehicle's left front part (lower part of front combination light).

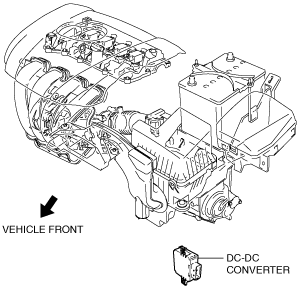

am2zzn00002674


Operation

•  The battery voltage increases based on the control signal from the PCM.

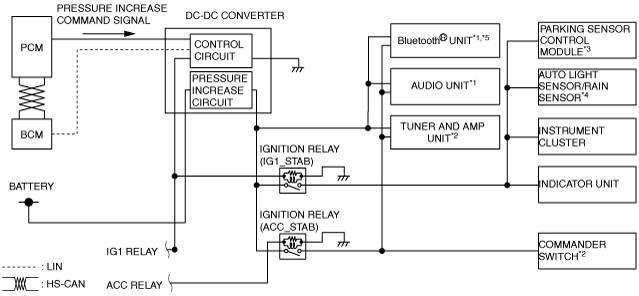

am2zzn00002675
*1  :Without center display
*2  :With center display
*3  :With parking sensor system
*4  :With auto wiper system/auto light system
*5  :With Bluetooth® system
•  For details of the DC-DC converter control, refer to CONTROL SYSTEM. (See DC-DC CONVERTER CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)


Fail-safe

DTC

Fail-safe
P0A8D:00
•  Inhibits engine-stop by operating the i-stop function. (With i-stop)
P0A94:00
U0298:00
