IGNITION SYSTEM LOCATION INDEX [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

IGNITION SYSTEM LOCATION INDEX [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0118i4800100

Note

• The ignition coil for the SKYACTIV-G 1.3 and SKYACTIV-G 1.5 (without coolant control valve (with 4-1 exhaust system)) engines does not have a built-in ion sensor.

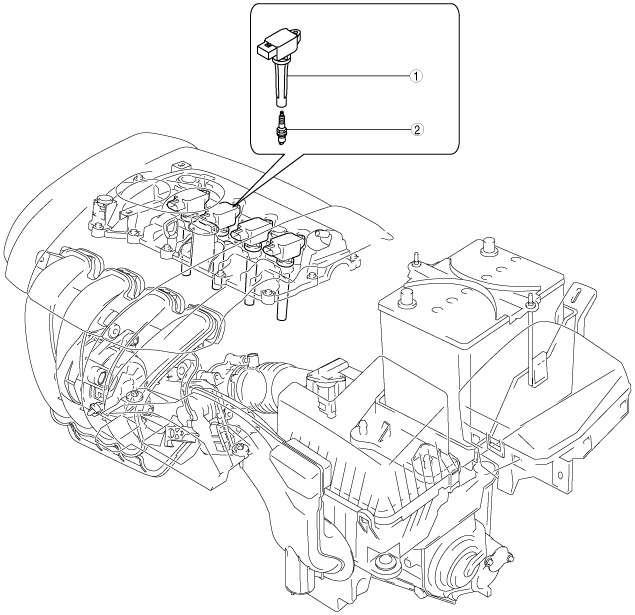

adejjw00011647

1

Ignition coil/ion sensor

(See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

(See IGNITION COIL INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

2

Spark plug

(See SPARK PLUG REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

(See SPARK PLUG INSPECTION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)
