STARTER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0119i7104500

Without i-stop Only

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

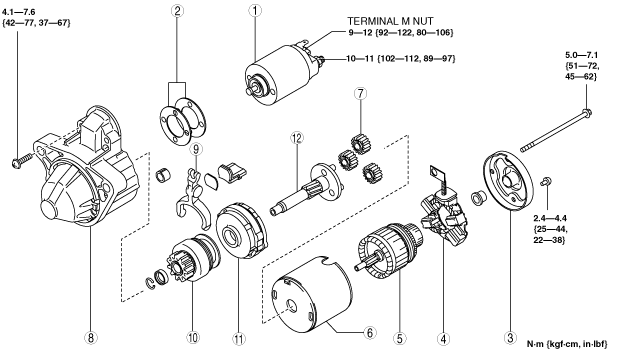

am6zzw00010254

1

Magnetic switch

2

Adjustment washer

3

Rear housing

4

Brush and brush holder

5

Armature

6

Yoke

7

Planetary gear

8

Front cover

9

Lever

10

Drive pinion

11

Internal gear

12

Gear shaft

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
