STARTER REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0119i7800200


Operation After Replacing Starter (With i-stop)

Note
•  If the number of times the starter can operate exceeds the limit, or there is any malfunction of the i-stop system-related parts, the i-stop warning light (amber) flashes.In addition, DTCs are stored simultaneously.
•  To ensure reliability of the i-stop system, replace the starter with a new one if the number of times the starter can operate has exceeded the upper limit.
•  When replacing the starter, perform the following procedure: When replacing the PCM simultaneously, perform the PCM configuration first. (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Vehicle Identification Number (VIN): 3MD DJ2H***# 200001—, 3MD DJ6H***# 200001—300000, JM6 DJ2HA**# 200001—300000, MM0 DJ2HA**# 300001—, MM0 DL2SA**# 300001—, MM6 DJ2HA**# 300001—, MM6 DL2SA**# 300001—, MM7 DJ**V** 300001—, MM7 DL**V** 300001—, MMZ DJ6H***# 300001—, MMZ DJ6***Z 300001—, MMZ DL6***Z 300001—

Step

Action
1
Note
•  Perform the procedures from Step 1 to 5 within 2 min.
―  If the operation exceeds 2 min, switch the ignition off and repeat the procedures from Step 1.
Switch the ignition ON (engine off).
2
Apply the parking brake firmly.
3
Shift the selector lever to the N position. (ATX)
Shift the shift lever to the neutral position. (MTX)
4
Perform the following work with the brake pedal depressed.
1.  Depress and release the accelerator pedal 6 times.
2.  Verify that the i-stop indicator light (green) flashes.
•  If the light does not flash, switch the ignition off and repeat the procedure from Step 1.
3.  Depress and release the accelerator pedal 6 times.
4.  Verify that the i-stop indicator light (green) changes from flashing to illumination.
•  If the light does not change to illumination, switch the ignition off and repeat the procedure from Step 1.
5
Long-press the i-stop OFF switch.
Wait until the i-stop indicator light (green) turns off (for 5 s or more).
•  If the light does not turn off, switch the ignition off and repeat the procedure from Step 1.
6
Switch the ignition off.
7
Start the engine.
8
Verify that the i-stop warning light (amber) turns off.
•  If the light does not turn off, switch the ignition off and repeat the procedure from Step 1.
9
Switch the ignition off and disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
10
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

Vehicle Identification Number (VIN): 3MD DJ2S***# 200001—, 3MD DJ6H***# 300001—, JM6 DJ2HA**# 300001—, JMZ DJ6H***# 200001—, JMZ DJ6H***# 200001—, JMZ DJ6H***# 200001—, MM7 DJ**V**# 300001—, MM7 DL**V**# 300001—, MM7 DJ2HA** 300001—, MM7 DJ2HA**# 300001—, MM7 DL2SA** 300001—, MM7 DL2SA**# 300001—, MMZ DJ6HV*Z# 300001—, MMZ DL6SV*Z# 300001—

Step

Action
1
Note
•  Perform the procedures from Step 1 to 5 within 2 min.
―  If the operation exceeds 2 min, switch the ignition off and repeat the procedures from Step 1.
Switch the ignition ON (engine off).
2
Apply the parking brake firmly.
3
Shift the selector lever to the N position. (ATX)
Shift the shift lever to the neutral position. (MTX)
4
Depress and release the accelerator pedal 12 times with the brake pedal depressed.
5
Long-press the i-stop OFF switch (for 5 s or more).
6
Switch the ignition off.
7
Start the engine.
8
Verify that the i-stop warning light (amber) turns off.
•  If the light does not turn off, switch the ignition off and repeat the procedure from Step 1.
9
Switch the ignition off and disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
10
Verifying battery condition initialization setting (i-stop setting). (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)


Starter Removal/Installation

Warning
•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
•  When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

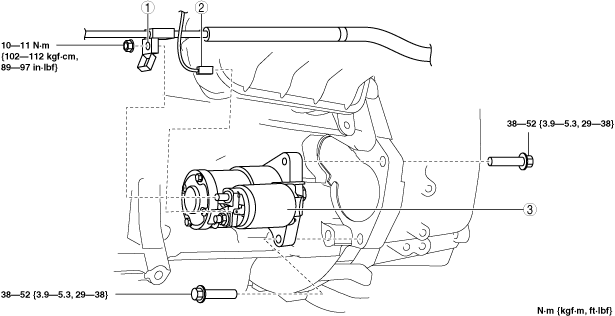

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

am6zzw00010255

1
Terminal B cable
2
Terminal S connector
3
Starter
(See Starter installation note (ATX).)


Starter installation note (ATX)

Caution
•  Do not overlap the starter with the end plate (area A shown in figure) when installing. If the starter is not correctly installed, the nut installed to the drive plate may contact the end plate causing abnormal noise.
am3uuw00012404
