•  The starter rotates the crankshaft via the ring gear of the dual-mass flywheel (MTX)/drive plate (ATX) and it serves as a trigger to start the engine.

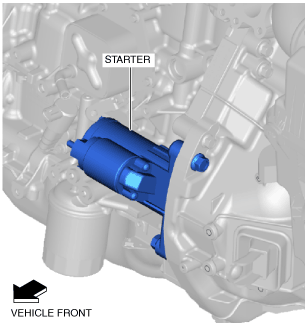

•   The starter is located on the left rear side of the engine.

am2zzn00003351

•  The starter is a coaxial reduction type which can obtain high torque.

am2uun00001139

•  For starter cut-off control details, refer to CONTROL SYSTEM. (See STARTER CUT-OFF CONTROL [SKYACTIV-D 1.5].)

•  Not applicable
