STARTER [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0119q3108300


Purpose, Function

•  The starter rotates the crankshaft via the ring gear of the dual-mass flywheel (MTX)/drive plate (ATX) and it serves as a trigger to start the engine.

Construction

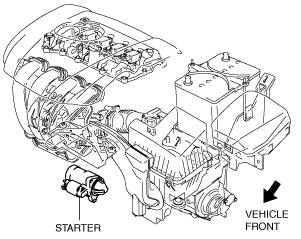

•  The starter is located on the left rear side of the engine.
am2zzn00002679
•  The starter is a coaxial reduction type which can obtain high torque.
am2uun00001139

Operation

•  For starter cut-off control details, refer to CONTROL SYSTEM. (See STARTER CUT-OFF CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

Fail-safe

DTC

Fail-safe
P0A0F:00
•  Flashes the i-stop warning light (amber) and inhibits engine-stop by operating the i-stop function. (with i-stop)
P0615:00
