CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5]


id0120r1100500


Purpose/Function

Cruise main indicator light (amber)
•  Illuminates while the cruise control system is in standby mode to inform the driver that the cruise control system is on standby.
Cruise set indicator light (green)
•  Illuminates during the cruise control system operation to inform the driver that the cruise control system is operating.

Construction

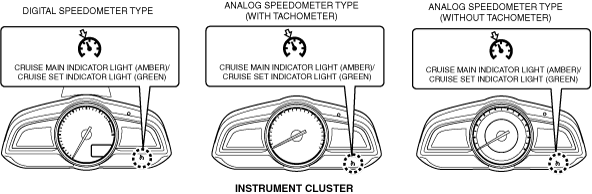

•  Built into the instrument cluster.
am2zzn00004757

Operation

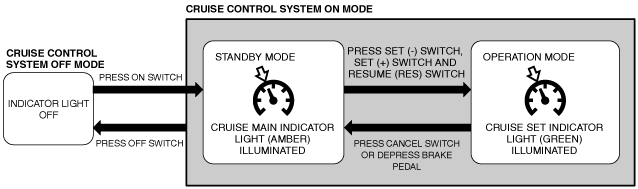

•  The illumination conditions for the cruise main indicator light (amber) and cruise set indicator light (green) are as follows:
am3zzn00003519

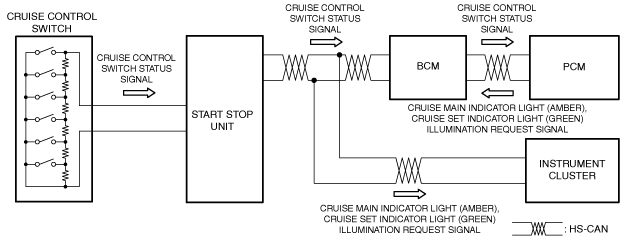

•  The PCM sends a cruise main indicator light (amber) or cruise set indicator light (green) illumination request signal to the instrument cluster via CAN communication through the BCM.
am2zzn00003581

Fail-safe

•  Not applicable
