ENGINE OIL CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1004200

SKYACTIV-G 1.5 (With 4-2-1 Exhaust System, Without coolant control valve)

Outline

•  The PCM reduces the oil pump load applied to the engine by controlling the appropriate engine hydraulic pressure (according to the engine operation conditions).

•  The engine hydraulic pressure switches in two steps. When hydraulic pressure is not needed, the oil pump discharge amount is reduced by the operation of the engine oil solenoid valve.

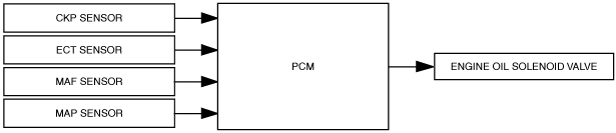

Block Diagram

am2zzn00003363

Operation

•  The PCM switches the engine oil pressure (which lubricates the engine) in two steps. It does this by driving the engine oil solenoid valve according to the engine operation conditions.

am3zzn00003589

Output duty value determination

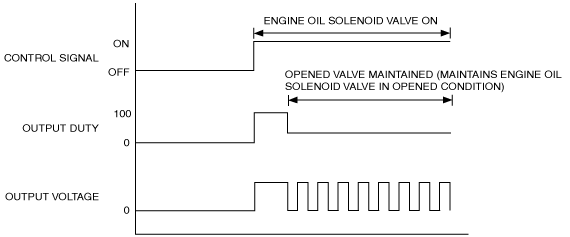

•  The PCM controls the operational voltage energized to the engine oil solenoid according to the duty signal. After opening the engine oil solenoid valve at the output duty ratio of 100%, load applied to the parts is reduced by lowering the duty value to the output duty value at which the open valve condition can be maintained. The output duty value for maintaining the opening value changes according to the battery voltage.

am3zzn00003590

Engine oil solenoid valve operation conditions

•  The operation conditions for the engine hydraulic pressure switching control vary according to the vehicle conditions.

Normal control

―  The PCM operates the engine oil solenoid valve when all of the following conditions are met:

•  Engine speed: Less than 4,000 rpm

•  Engine coolant temperature: Less than 98 °C {208 °F}

•  Charging efficiency: Less than specification (varies according to engine speed.)

Air bleeding control

―  If all of the following conditions are met, the PCM operates the engine oil solenoid valve several times to bleed air from inside the hydraulic circuit. (Engine oil solenoid operation amount varies depending on engine speed and engine coolant temperature.)

•  Engine speed: 500—900 rpm

•  Engine coolant temperature: 50—70 °C {122—158 °F}

•  For details on the engine oil solenoid valve, refer to the LUBRICATION SYSTEM. (See ENGINE OIL SOLENOID VALVE [SKYACTIV-G 1.5 (WITH 4-2-1 EXHAUST SYSTEM)].)

Hydraulic pressure switching mechanism

•  When the engine oil solenoid valve operates, the hydraulic circuit changes according to the following. The engine oil supply amount is controlled by changing the hydraulic circuit.

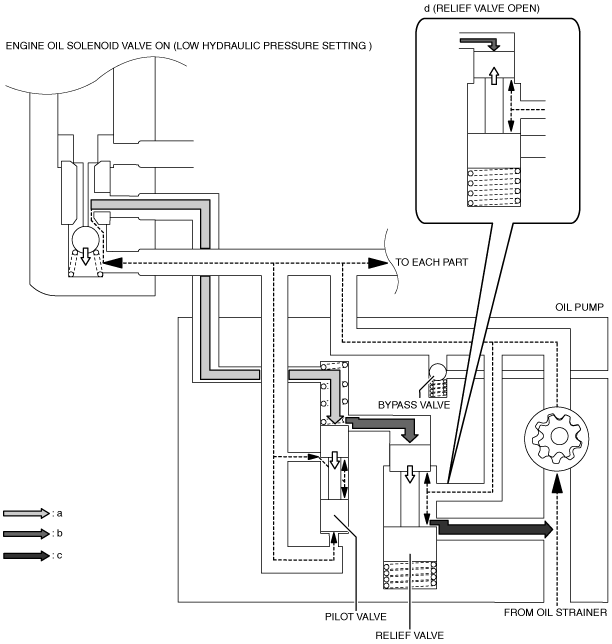

Engine oil flow during low hydraulic pressure setting (engine oil solenoid valve ON)

a.  When the engine oil solenoid valve turns on, hydraulic pressure is also applied to the top of the pilot valve. The pilot valve presses downward by spring force because the hydraulic pressure applied to the top and bottom of the pilot valve is nearly equal.

b.  Hydraulic pressure is applied to the top of the relief valve.

c.  When the hydraulic pressure exceeds the relief valve opening pressure, the relief valve is pressed downward and engine oil flows out (hydraulic pressure decrease).

d.  When the hydraulic pressure is less than the relief valve opening pressure, the relief valve closes. As a result, engine oil outflow stops (hydraulic pressure increase).

e.  (c)-(d) is performed repeatedly to adjust the hydraulic pressure.

am3zzn00003591

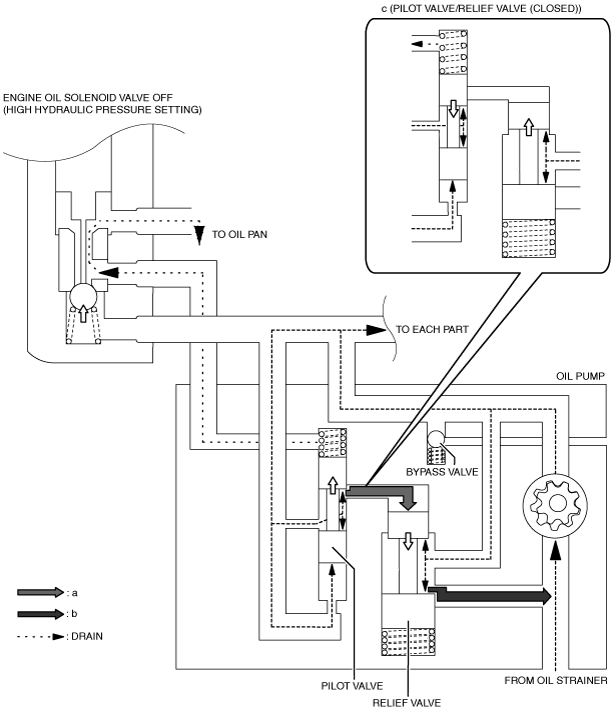

Engine oil flow during high hydraulic pressure setting (engine oil solenoid valve OFF)

a.  When the hydraulic pressure exceeds the pilot valve opening pressure, the pilot valve is pressed upward and hydraulic pressure is applied.

b.  Because the hydraulic pressure exceeds the relief valve opening pressure by the hydraulic pressure applied to the top of the relief valve, the relief valve is pressed downward and engine oil flows out (hydraulic pressure decrease).

c.  When the hydraulic pressure is less than the pilot valve opening pressure, the pilot valve closes. As a result, the relief valve is closed and engine oil outflow stops (hydraulic pressure increase).

d.  (a)-(c) is performed repeatedly to adjust the hydraulic pressure.

am3zzn00003592
