CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1006300

Purpose/Function

• Detects the crankshaft speed as basic information (mainly used to determine the fuel injection timing and ignition timing) and sends it to the PCM as a CKP signal.

Construction

• Installed on the side of the cylinder block (right side).

am2zzn00003378

• A MR (Magnetic Resistance) element has been adopted (as the detecting element) for detecting the crankshaft speed.

Operation

• Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.

am3uun00001659

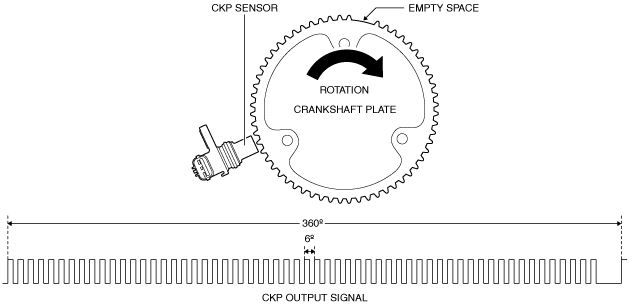

CKP sensor characteristic

am3uun00001660

Fail-safe

DTC No.

Fail-safe function

P0335:00

• Stops fuel injection.

• Stops ignition.
