CAMSHAFT POSITION (CMP) SENSOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1006700


Purpose/Function

•  Detects the camshaft speed as basic information (mainly used to determine the fuel injection timing and ignition timing) and sends it to the PCM as a CMP signal.

Construction


Intake CMP sensor

•  Installed on the cylinder head.
am2zzn00003379
•  A GMR element has been adopted (as the detecting element) for detecting the intake camshaft speed.


Exhaust CMP sensor (without coolant control valve (4-2-1 exhaust system), with coolant control valve)

•  Installed on the rear housing.
am2zzn00003380
•  A GMR element has been adopted (as the detecting element) for detecting the exhaust camshaft speed.


Operation

•  Sends the signal, which fluctuates according to the camshaft speed, to the PCM.
am2zzn00003381

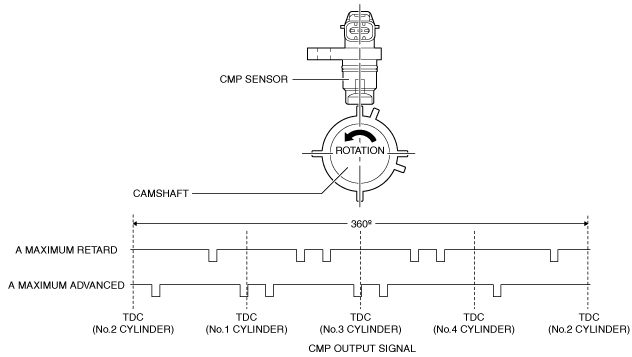

CMP sensor characteristic (without coolant control valve (4-1 exhaust system))

am2zzn00003382

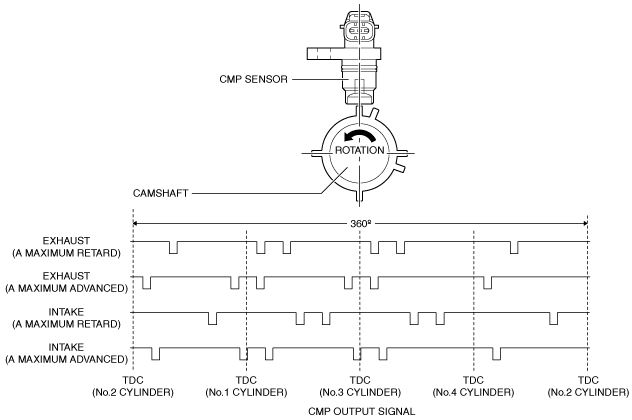

CMP sensor characteristic (without coolant control valve (4-2-1 exhaust system), with coolant control valve)

am2zzn00003383

Fail-safe


Intake CMP sensor

DTC No.

Fail-safe function
P0340:00
•  Stops fuel injection.
•  Stops ignition.
•  Set the variable valve timing control to the maximum cam retard mode. (SKYACTIV-G 1.3, SKYACTIV-G 1.5 (with 4-1 exhaust system))
•  Set the electric variable valve timing control to the maximum cam retard mode. (SKYACTIV-G 1.5 (with 4-2-1 exhaust system))
•  Inhibits traction control.


Exhaust CMP sensor (without coolant control valve (4-2-1 exhaust system), with coolant control valve)

DTC No.

Fail-safe function
P0365:00
•  Stops fuel injection.
•  Stops ignition.
