ENGINE OIL TEMPERATURE SENSOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1256900

With coolant control valve

Purpose/Function

•  Detects the engine oil temperature and sends it to the PCM as an engine oil temperature signal.

Construction

•  Installed on the cylinder block.

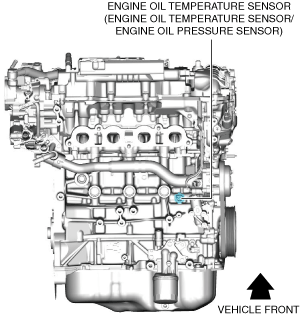

ac5wzn00004471

•  A thermistor has been adopted (as the detecting element) for detecting the engine oil temperature.

•  The engine oil temperature sensor is integrated with the engine oil pressure sensor.

Operation

•  Sends the signal, which fluctuates according to the engine oil temperature, to the PCM.

ac3wzn00000800

Engine oil temperature sensor characteristic

am2zzn00003690

Fail-safe

•  Not applicable
