WATER FLOW CONTROL [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1300800

SKYACTIV-G 1.5 (With 4-2-1 Exhaust System, With coolant control valve)

Outline

•  The PCM adjusts the engine coolant control valve and supplies engine coolant to the appropriate engine coolant passage according to the changes in the engine coolant temperature.

•  By blocking each water passage before the engine warms up, and suppressing heat radiation, the temperature of the internal wall of the cylinder is quickly increased to improve fuel economy.

Block Diagram

ac5wzn00004548

Operation

Operation condition

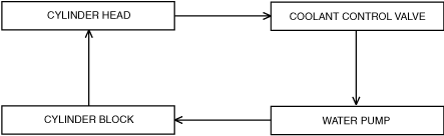

•  Passage between coolant control valve and water pump

―  Constant circulation

ac5wzn00004549

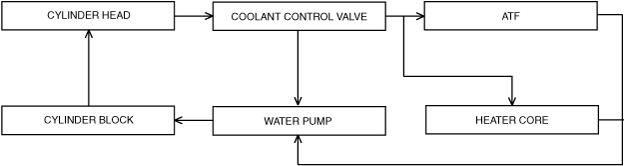

•  Passage between coolant control valve and ATF, heater core

―  Condition before engine warm-up

ac5wzn00004550

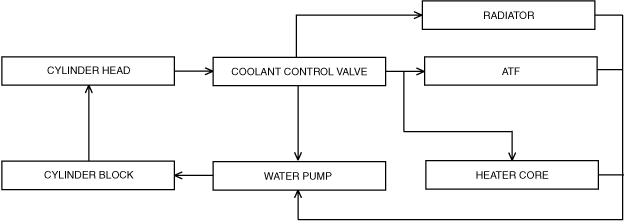

•  Passage between coolant control valve and radiator

―  Engine warmed up

ac5wzn00004551
