COOLANT CONTROL VALVE POSITION SENSOR [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1433800

With coolant control valve

Purpose/Function

•  Depending on the engine operation conditions, the coolant control valve position sensor detects the open/closed condition of the coolant control valve so that the appropriate amount of engine coolant can be sent to the appropriate coolant passage at the appropriate timing.

•  The coolant control valve position sensor detects the valve angle of the coolant control valve and sends it to the PCM as an coolant control valve opening angle signal.

Construction

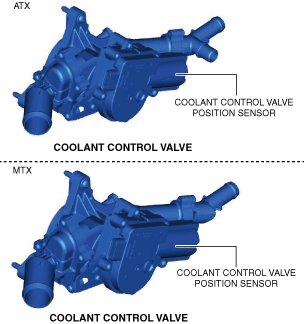

•  The coolant control valve position sensor is integrated with the coolant control valve.

am2zzn00004944

Operation

•  Sends a signal to the PCM via SENT communication which fluctuates according to the engine coolant control valve angle.

ac3wzn00000822

Fail-safe

DTC No.	Fail-safe function
P2681:00	•  PCM restricts engine torque. •  Inhibits the EGR control. •  Inhibits the auto DPF regeneration control. •  Inhibits the compulsory DPF regeneration control. •  Inhibits engine-stop by operating the i-stop function.
P26A3:00
