CONTROL SYSTEM WIRING DIAGRAM [SKYACTIV-G 1.3, SKYACTIV-G 1.5]

id0140q1800400

PCM (200 Pin Type)

am2zzw00012345

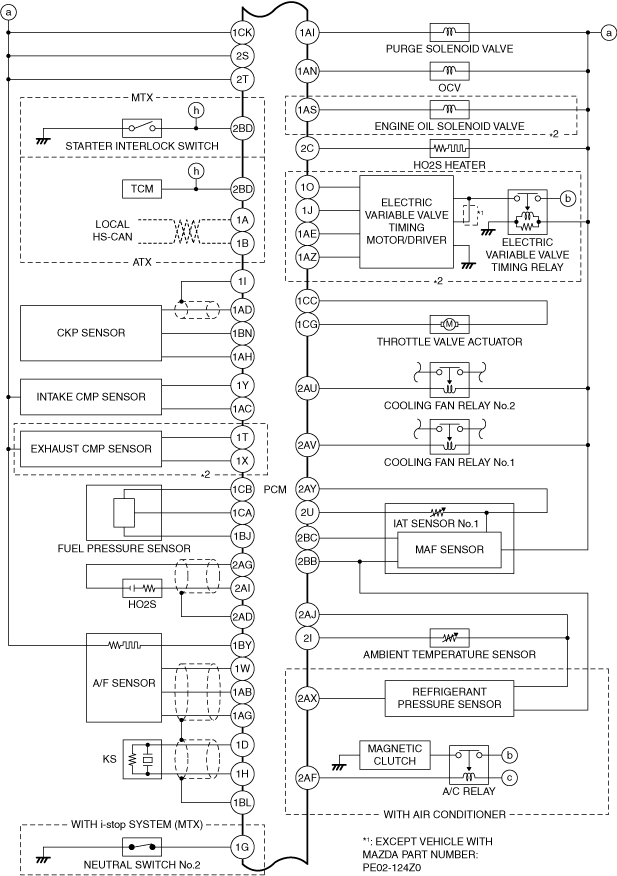

am2zzw00015471

am2zzw00014443

*1 :Without coolant control valve (4-1 exhaust system)

*2 :Without coolant control valve (4-2-1 exhaust system), with coolant control valve

*3 :With fuel pump control module

*4 :Without fuel pump control module

PCM (186 Pin Type)

am2zzw00015148

am2zzw00015149

am2zzw00015150

*1 :With fuel pump control module

*2 :Without fuel pump control module
