CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-D 1.5]

id0140z5006300

Purpose/Function

• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing.

• Detects the crankshaft speed and sends it to the PCM as a CKP signal.

Construction

• Installed on the side of the cylinder block (right side).

am2zzn00003612

• A MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.

Operation

• Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.

am2zzn00003613

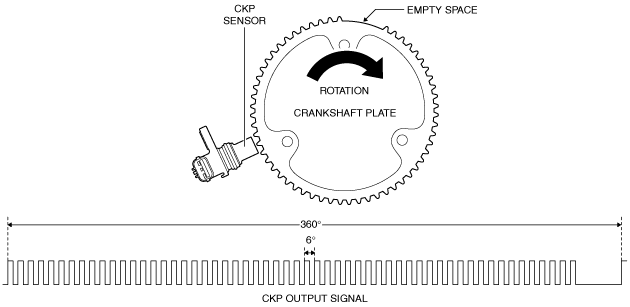

CKP sensor characteristic

am2zzn00003614

Fail-safe

DTC No.

Fail-safe function

P0016:00

•  Inhibits engine-stop by operating the i-stop function.

•  PCM restricts engine-transaxle integration control. (ATX)

P0336:00

•  Inhibits engine-stop by operating the i-stop function.

P0339:00

P0337:00

•  Limits the engine torque.

•  Inhibits the EGR control.

•  Inhibits the auto DPF regeneration control.

•  Inhibits the compulsory DPF regeneration control.

•  Fully open the intake shutter valve.

•  Inhibits engine-stop by operating the i-stop function.

•  PCM restricts engine-transaxle integration control. (ATX)

DTC No.	Fail-safe function
P0016:00	• Inhibits engine-stop by operating the i-stop function. • PCM restricts engine-transaxle integration control. (ATX)
P0336:00	• Inhibits engine-stop by operating the i-stop function.
P0339:00	• Inhibits engine-stop by operating the i-stop function.
P0337:00	• Limits the engine torque. • Inhibits the EGR control. • Inhibits the auto DPF regeneration control. • Inhibits the compulsory DPF regeneration control. • Fully open the intake shutter valve. • Inhibits engine-stop by operating the i-stop function. • PCM restricts engine-transaxle integration control. (ATX)
