INTAKE AIR TEMPERATURE (IAT) SENSOR [SKYACTIV-D 1.5]

id0140z5007100

IAT Sensor No.1

Purpose/Function

•  Detects the intake air temperature before it passes through the air cleaner as basic information for mainly determining the fuel injection amount.

•  Detects the intake air temperature before it passes through the air cleaner and sends it to the PCM as an intake air temperature signal.

Construction

•  Built into the MAF sensor.

am2zzn00003623

•  A thermistor has been adopted as the detecting element for detecting the IAT.

Operation

•  Sends the signal, which fluctuates according to the IAT after passing through the air cleaner, to the PCM.

am2zzn00003624

IAT sensor No.1 characteristic

am2zzn00003625

Fail-safe

DTC No.	Fail-safe function
P0111:00	•  Limits the engine torque. •  Limits the upper limit of the engine speed. •  Inhibits the EGR control. •  Inhibits the auto DPF regeneration control. •  Inhibits the compulsory DPF regeneration control. •  Inhibits engine-stop by operating the i-stop function. •  PCM restricts engine-transaxle integration control. (ATX)
P0112:00
P0113:00

IAT Sensor No.2

Purpose/Function

•  Detects the IAT (in intake manifold) as basic information for mainly determining the fuel injection amount.

•  Detects the IAT (in intake manifold) and sends it to the PCM as an intake air temperature signal.

Construction

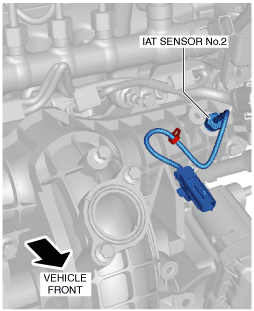

•  Installed on the intake manifold.

am2zzn00003626

•  A thermistor has been adopted as the detecting element for detecting the IAT.

Operation

•  Sends the signal, which fluctuates according to the IAT in the intake manifold, to the PCM.

am2zzn00003627

IAT sensor No.2 characteristic

am2zzn00003628

Fail-safe

DTC No.	Fail-safe function
P0096:00	•  Limits the engine torque. •  Inhibits the EGR control. •  Inhibits engine-stop by operating the i-stop function. •  PCM restricts engine-transaxle integration control. (ATX)
P0097:00
P0098:00
