NEUTRAL SWITCH [SKYACTIV-D 1.5]

id0140z5008100

Purpose/Function

• Detects the neutral position of the shift lever.

Construction

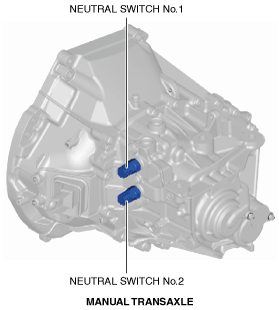

• Installed to the manual transaxle.

am2zzn00003633

• An ON/OFF type switch has been adopted.

Operation

• Sends the neutral switch on/off signal to the PCM.

am2zzn00003634

• The contact point is on when in neutral to output voltage and off when not in neutral.

am2zzn00003635

Fail-safe

DTC No.

Fail-safe function

P0850:00

• Inhibits engine-stop by operating the i-stop function.
