ENGINE OIL PRESSURE SENSOR [SKYACTIV-D 1.5]

id0140z5257000

Purpose/Function

• Detects the engine oil pressure as basic information for mainly idle speed control.

• Detects the engine oil pressure and sends it to the PCM as an engine oil pressure signal.

Construction

• Installed on the cylinder block.

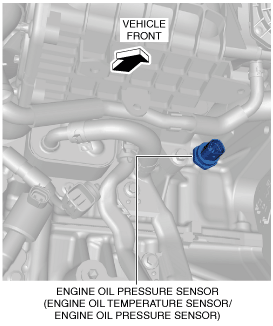

am2zzn00003691

• A semiconductor strain gauge has been adopted to the engine oil pressure sensor as the detecting element for detecting the engine oil pressure.

• The engine oil pressure sensor is integrated with the engine oil temperature sensor.

Operation

• Sends the signal, which fluctuates according to the engine oil pressure, to the PCM.

am2zzn00003692

Engine oil pressure sensor characteristic

am2zzn00003693

Fail-safe

DTC No.

Fail-safe function

P0522:00

•  Limits the engine torque.

•  Limits the upper limit of the engine speed.

P0523:00

P0524:00

•  Limits the engine torque.

•  Limits the upper limit of the engine speed.

•  Inhibits the EGR control.

•  Inhibits the boost control.

•  Inhibits the auto DPF regeneration control.

•  Inhibits the compulsory DPF regeneration control.

•  Inhibits engine-stop by operating the i-stop function.

P055F:00

•  Limits the engine torque.

DTC No.	Fail-safe function
P0522:00	• Limits the engine torque. • Limits the upper limit of the engine speed.
P0523:00
P0524:00	• Limits the engine torque. • Limits the upper limit of the engine speed. • Inhibits the EGR control. • Inhibits the boost control. • Inhibits the auto DPF regeneration control. • Inhibits the compulsory DPF regeneration control. • Inhibits engine-stop by operating the i-stop function.
P055F:00	• Limits the engine torque.
