ACTUATOR POSITION SENSOR (TURBOCHARGER WITH VARIABLE TURBINE GEOMETRY) [SKYACTIV-D 1.5]

id0140z5439700


Purpose/Function

•  The actuator position sensor detects the open/closed condition of the variable nozzle which drives the turbocharger actuator of the variable geometry turbocharger as basic information for mainly boost control.
•  The actuator position sensor detects the open/closed condition of the valve which drives the turbocharger actuator of the variable geometry turbocharger and sends the signal to the PCM as a turbocharger actuator opening angle signal.

Construction

•  The actuator position sensor of the variable geometry turbocharger is located on the turbocharger actuator.
am2zzn00003726
•  The actuator position sensor of the variable geometry turbocharger has adopted a Hall element to the detection area for detecting the open/closed condition of the valve which drives the turbocharger actuator of the variable geometry turbocharger.

Operation

•  The signal, which changes according to the open/closed condition of the variable nozzle driving the turbo actuator of the variable geometry turbocharger, is sent to the PCM.
adejjn00004139

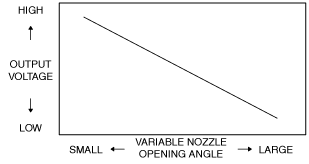

Actuator position sensor (turbocharger with variable turbine geometry) characteristic

adejjn00004140

Fail-safe

DTC No.

Fail-safe function
P2263:00
•  Limits the engine torque.
•  Limits the upper limit of the engine speed.
•  Inhibits the EGR control.
•  Inhibits the boost control.
•  Inhibits the auto DPF regeneration control.
•  Inhibits the compulsory DPF regeneration control.
•  PCM restricts engine-transaxle integration control. (ATX)
P2564:00
•  Limits the engine torque.
•  Inhibits the EGR control.
•  Inhibits the boost control.
•  Inhibits the auto DPF regeneration control.
•  Inhibits the compulsory DPF regeneration control.
•  Inhibits engine-stop by operating the i-stop function.
•  PCM restricts engine-transaxle integration control. (ATX)
P2565:00
