FUEL INJECTION TIMING CONTROL [SKYACTIV-D 1.5]
id0140z5988000
Outline
• The PCM determines and controls the optimum fuel injection timing according to engine operation conditions based on the signals from each input sensor.

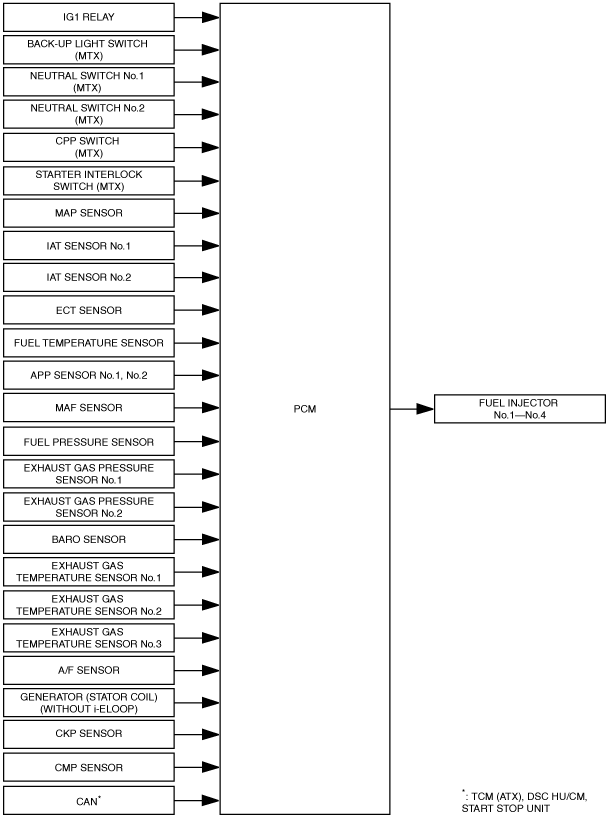

Block Diagram

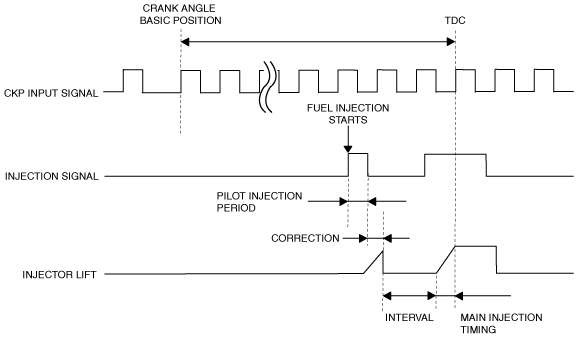

Operation
• Fuel injection start timing is determined based on the fuel injection amount and crank angle signals input from the CKP sensor.
Determination of Fuel Injection Timing
-
• The PCM calculates the optimum fuel injection timing based on the predetermined target fuel injection timing and input signals from each sensor.
Target Fuel Injection Timing
-
• Target fuel injection timing is calculated based on the engine speed and the fuel injection amount.
Injection Timing Correction
-
• The actual fuel injection timing is corrected based on the input signals from each sensor such as the IAT, ECT, and BARO sensors.
