TORSION BEAM AXLE REMOVAL/INSTALLATION [REAR BRAKE (DRUM)]

id0214c9128000

Caution

•  Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

1.  Remove the main silencer and the three-way catalytic converter as a single unit.(SKYACTIV-G 1.3, SKYACTIV-G 1.5) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

2.  Remove the main silencer and middle pipe as a single unit. (SKYACTIV-D 1.5) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

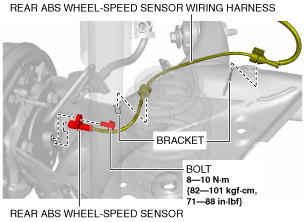

3.  Remove the rear ABS wheel-speed sensor from the wheel hub component.

am2zzw00012781

4.  Remove the rear ABS wheel-speed sensor wiring harness from the bracket and set it aside so that it does not interfere with the servicing.

5.  Disconnect the rear parking brake cable end from the case of the end cable.

am2zzw00008123

6.  Remove the clip and disconnect the rear brake pipe.

am2zzw00008124

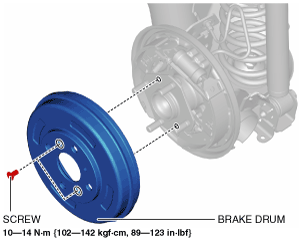

7.  Remove the screws, and remove the brake drum.

am2zzw00008125

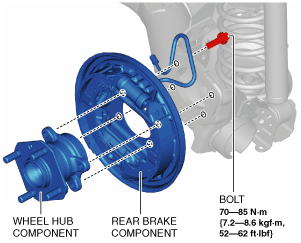

8.  Remove the bolts, and remove the wheel hub component and the rear brake component from the torsion beam axle.

am2zzw00008126

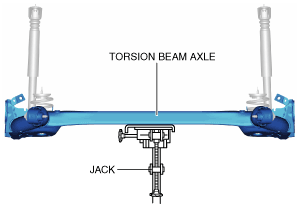

9.  Support the torsion beam axle using a jack.

Warning

•  If the torsion beam axle falls off while it is removed/installed, it may cause serious injury or death, or vehicle damage. Always use a jack when removing/installing the torsion beam axle and verify that it is securely supported.

am2zzw00008127

10.  Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION [REAR BRAKE (DRUM)].)

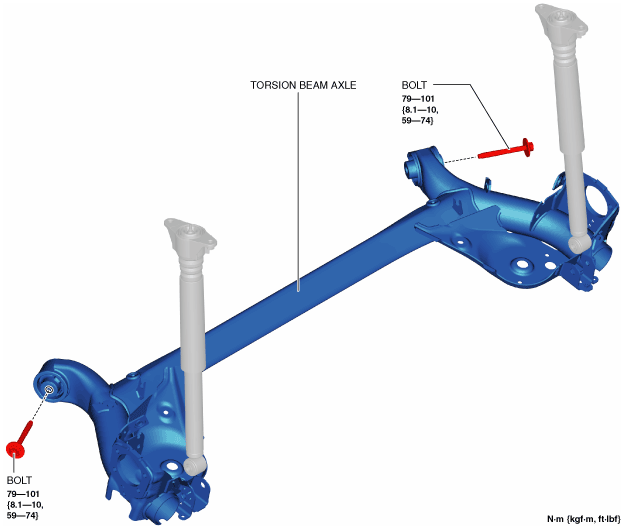

11.  Remove the bolts. (See Torsion Beam Axle Installation Note.)

am2zzw00008128

12.  Lower the jack slowly and remove the torsion beam axle.

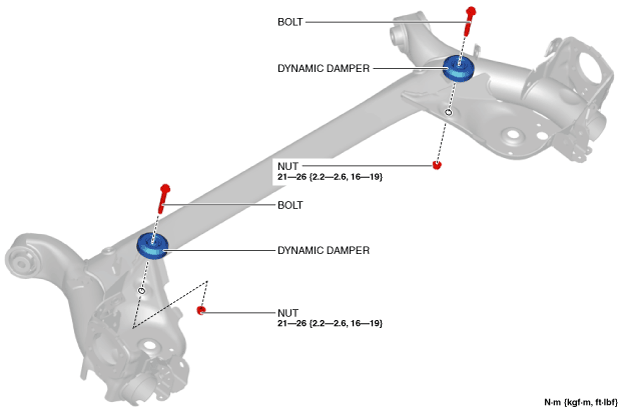

13.  Remove the bolts and nuts. (With dynamic damper)

am2zzw00012795

14.  Remove the dynamic dampers. (With dynamic damper)

15.  Install in the reverse order of removal.

Torsion Beam Axle Installation Note

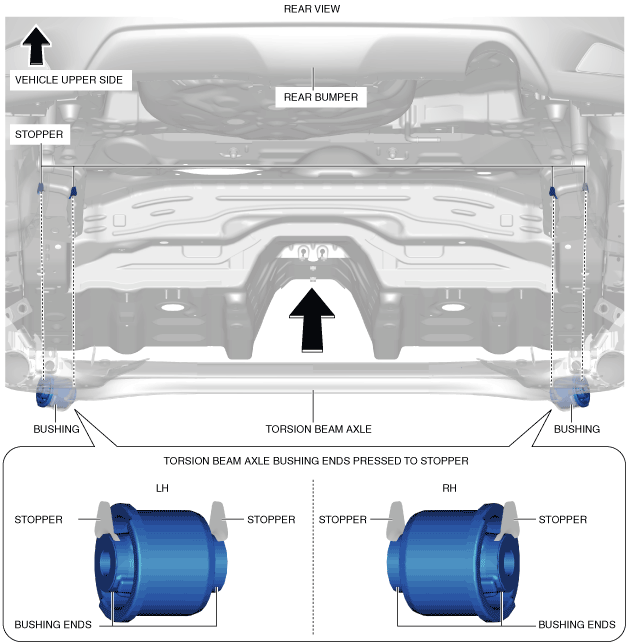

1.  While pressing both ends of the torsion beam axle bushing to the stoppers shown in the figure, install the bolts.

am2zzw00012782
