REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY [REAR BRAKE (DRUM)]

id0214c9900000

Vehicle Identification Number (VIN): Except 3MD^**

Note

• The rear shock absorber cannot be disassembled.

Vehicle Identification Number (VIN): 3MD^**

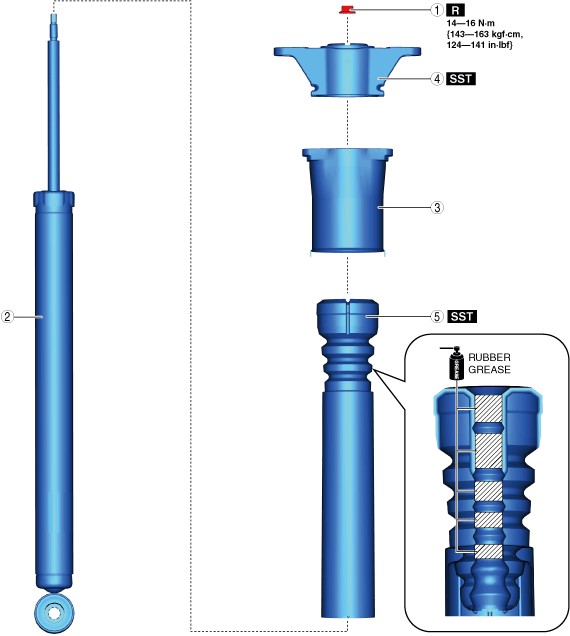

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

am2zzw00013039

Bound stopper component and mounting rubber assembly note

1. Wipe off grease on the bound stopper component using a cloth.

2. Apply rubber grease to the inside of the bound stopper component.

am2zzw00013040

Grease application amount

0.2—0.5 g {0.008—0.017 oz}

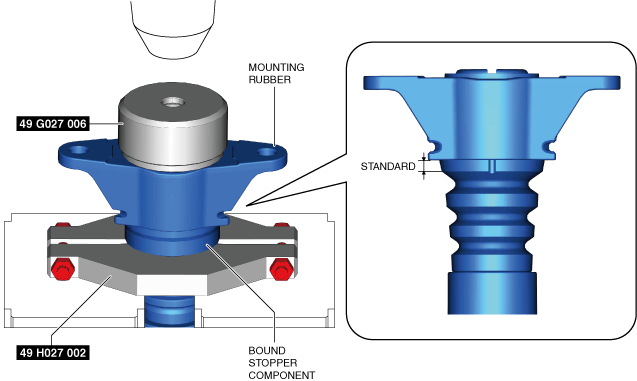

3. Assemble the bound stopper component and the mounting rubber using the SSTs and a press.

am2zzw00013041

4. Verify that the assembly position of the bound stopper component and the mounting rubber is within the standard.

Standard

10.0 mm {0.394 in} or less

Dust boot assembly note

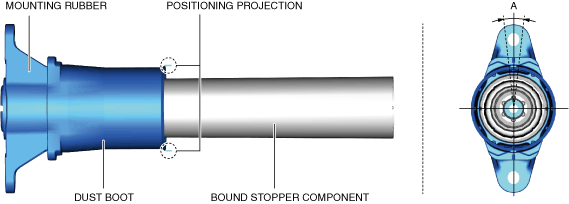

1. Assemble the dust boot to position A shown in the figure.

am2zzw00013042

A:0°±6.5°

1	Piston rod nut
2	Rear shock absorber
3	Dust boot (See Dust boot assembly note.)
4	Mounting rubber (See Bound stopper component and mounting rubber assembly note.)
5	Bound stopper component (See Bound stopper component and mounting rubber assembly note.)
