ON-BOARD DIAGNOSTIC SYSTEM [DSC HU/CM]

id040262181300

Outline

• The on-board diagnostic system consists of the following functions:

― A malfunction detection function that detects abnormalities in input/output signals when the ignition switch is at the ON position.

― A PID/data monitor function that reads out specified input/output signals.

― A simulation function that allows for override operation of output parts (such as solenoid valves).

• The data link connector 2 (DLC-2), which groups together all the connectors used for malfunction diagnosis into a single location, has been adopted, thereby improving serviceability. Diagnosis is performed by connecting the Mazda Modular Diagnostic System (M-MDS) to the DLC-2.

• In addition to DTC read-out, the Mazda Modular Diagnostic System (M-MDS) has following functions:

― PID/data monitor access

― DTC clear using the display screen of the diagnostic tester

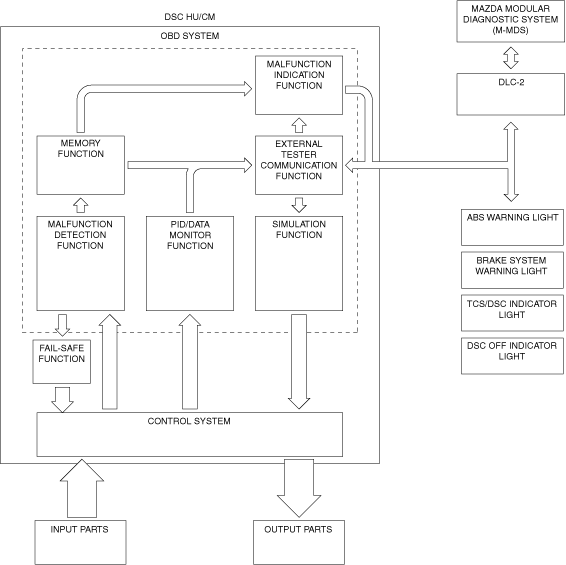

Block diagram

am2zzn00004403

Function

Malfunction detection function

• The malfunction detection function detects malfunctions in the input/output signal system of the DSC HU/CM when the ignition switched ON or driving the vehicle.

• The DSC HU/CM performs the following malfunction detections:

― The ABS warning light, brake system warning light, TCS/DSC indicator light and DSC OFF indicator light illuminate for approx. 3.0 s when the ignition is switched ON. At the same time, the input/output signals of each part are monitored for malfunction diagnosis.

― After starting to drive, the first time the vehicle speed is approx. 10 km/h {6.2 mph} or more the pump motor is operated and malfunction diagnosis is performed again. The input/output signals of each part are then constantly monitored and malfunctions are diagnosed.

Note

• The sound of the pump motor operation can be heard.

Malfunction display function

• When the malfunction detection function detects a malfunction, the corresponding lights illuminate to alert the driver.

• Using the external tester communication function, DTCs can be output to the DLC-2 via the CAN line. At the same time, malfunction detection results are sent to the memory function and fail-safe function.

Memory function

• The memory function stores DTCs of malfunctions in input/output signal systems. With this function, once a DTC is stored it is not cleared after the ignition switch has been switched OFF, even if the malfunctioning signal system has returned to normal.

• Since the DSC HU/CM has a built-in non-volatile memory, DTCs are not cleared even if the battery is removed. Therefore, it is necessary to clear the memory after performing repairs. Refer to the Workshop Manual for the DTC clearing procedure.

DTC table

×: Applicable

—: Not applicable

DTC	ABS warning light	Brake system warning light (when parking brake is released)	TCS/DSC indicator light	DSC OFF indicator light	Tire Pressure Monitoring System (TPMS) warning light^*1	Smart City Brake Support (SCBS) warning light (amber)^*2	Description	Fail-safe	Drive cycle	Self test type^*3	Memory function
B10DF:46	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Illuminates	DSC HU/CM internal malfunction	×	—	C, D	×
B11D4:08	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Laser sensor	×	—	C, D	×
C0001:01	Illuminates	Illuminates	Illuminates	Not illuminate	Not illuminate	Illuminates	DSC HU/CM internal malfunction (solenoid valve system)	×	—	C, D	×
C0002:01
C0003:01
C0004:01
C0010:01
C0011:01
C0014:01
C0015:01
C0018:01
C0019:01
C001C:01
C001D:01
C0020:11	Illuminates	Not illuminate	Illuminates	Not illuminate	Not illuminate	Illuminates	Pump motor, motor relay	×	—	C, D	×
C0020:12
C0020:13
C0020:49
C0020:71
C0023:62	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Brake switch	×	—	C, D	×
C0030:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LF ABS sensor rotor	×	—	C, D	×
C0031:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LF ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0031:11	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LF ABS wheel-speed sensor	×	—	C, D	×
C0031:15	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LF ABS wheel-speed sensor	×	—	C, D	×
C0031:29	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LF ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0031:2F
C0031:64
C0033:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RF ABS sensor rotor	×	—	C, D	×
C0034:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RF ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0034:11	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RF ABS wheel-speed sensor	×	—	C, D	×
C0034:15	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RF ABS wheel-speed sensor	×	—	C, D	×
C0034:29	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RF ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0034:2F
C0034:64
C0036:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LR ABS sensor rotor	×	—	C, D	×
C0037:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LR ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0037:11	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LR ABS wheel-speed sensor	×	—	C, D	×
C0037:15	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LR ABS wheel-speed sensor	×	—	C, D	×
C0037:29	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	LR ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C0037:2F
C0037:64
C0039:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RR ABS sensor rotor	×	—	C, D	×
C003A:07	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RR ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C003A:11	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RR ABS wheel-speed sensor	×	—	C, D	×
C003A:15	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RR ABS wheel-speed sensor	×	—	C, D	×
C003A:29	Illuminates	Not illuminate^*4	Illuminates	Not illuminate	Illuminates	Illuminates	RR ABS wheel-speed sensor/ABS sensor rotor	×	—	C, D	×
C003A:2F
C003A:64
C0040:64	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	Brake switch	×	—	C, D	×
C0044:28	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates^*5	Illuminates^*5	Brake fluid pressure sensor	×	—	C, D	×
C0044:47
C0044:49
C0044:51
C0044:54	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates
C0044:64	Illuminates	Illuminates	Illuminates	Not illuminate	Illuminates	Illuminates
C0044:8F	Illuminates	Illuminates	Illuminates	Not illuminate	Illuminates	Illuminates
C0051:62	Illuminates	Illuminates	Illuminates	Not illuminate	Illuminates	Illuminates	EPS control module	×	—	C, D	×
C0051:64	Illuminates	Illuminates	Illuminates	Not illuminate	Illuminates	Illuminates
C0051:67	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Illuminates
C0051:85	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates
C0061:28	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	SAS control module	×	—	C, D	×
C0061:54	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM (unperformed initialization procedure)	×	—	C, D	×
C0061:64	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	SAS control module	×	—	C, D	×
C0062:28	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Not illuminate	SAS control module	×	—	C, D	×
C0062:54	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Not illuminate	DSC HU/CM (unperformed initialization procedure)	×	—	C, D	×
C0062:64	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Not illuminate	SAS control module	×	—	C, D	×
C0062:76	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Not illuminate	SAS control module	×	—	C, D	×
C0063:28	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	SAS control module	×	—	C, D	×
C0063:54	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM (unperformed initialization procedure)	×	—	C, D	×
C0063:64	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	SAS control module	×	—	C, D	×
C006B:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	TCS/DSC control	×	—	C, D	×
C0072:68	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	TCS/DSC control	×	—	C, D	×
C1031:35	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Not illuminate	Tire Pressure Monitoring System (TPMS) set switch	×	—	C, D	×
C1031:41	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Not illuminate	Tire Pressure Monitoring System (TPMS)	×	—	C, D	×
C1031:54
C1031:68
C1109:64	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	DSC OFF switch	—	—	C, D	×
C1A08:1C	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM internal malfunction	×	—	C, D	×
P0942:46	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM mismatched installation	×	—	C, D	×
P0942:49	Illuminates^*5	Illuminates^*5	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM mismatched installation	×	—	C, D	×
U0001:88	Illuminates	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	CAN line	×	—	C, D	×
U0100:00	Illuminates^*5	Not illuminate	Illuminates^*5	Not illuminate	Illuminates^*5	Illuminates^*5
U0101:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates
U0104:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate
U0131:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates
U0151:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Illuminates^*5
U0155:00	Illuminates^*5	Not illuminate	Illuminates^*5	Not illuminate	Not illuminate	Illuminates^*5
U0235:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates
U0301:09	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Signal error from PCM	×	—	C, D	×
U0336:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Not illuminate	Signal error from SAS control module	×	—	C, D	×
U0401:00	Not illuminate	Not illuminate	Illuminates^*5	Not illuminate	Illuminates^*5	Illuminates^*5	Signal error from PCM	×	—	C, D	×
U0402:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	Signal error from transmission/transaxle	×	—	C, D	×
U0405:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Signal error from radar unit	×	—	C, D	×
U0420:00	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	Signal error from EPS control module	×	—	C, D	×
U0423:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Illuminates	Signal error from instrument cluster	×	—	C, D	×
U0433:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Signal error from laser sensor	×	—	C, D	×
U0443:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Illuminates	Signal error from instrument cluster	×	—	C, D	×
U0452:86	Not illuminate	Not illuminate	Illuminates	Not illuminate	Illuminates^*5	Illuminates^*5	Signal error from SAS control module	×	—	C, D	×
U0515:00	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Signal error from cruise control switch	×	—	C, D	×
U2007:46	Not illuminate	Not illuminate	Illuminates	Not illuminate	Not illuminate	Illuminates	DSC HU/CM internal malfunction	×	—	C, D	×
U2007:62	Illuminates	Illuminates	Illuminates	Not illuminate	Not illuminate	Illuminates	DSC HU/CM internal malfunction	×	—	C, D	×
U2101:00	Illuminates	Not illuminate	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM configuration	×	—	C, D	×
U2300:52
U2300:54
U2300:55
U2300:56
U2300:64
U3000:49	Illuminates	Illuminates^*5	Illuminates	Not illuminate	Illuminates	Illuminates	DSC HU/CM internal malfunction	×	—	C, D	×
U3003:08	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Not illuminate	Battery power supply	—	—	C, D	×
U3003:16	Illuminates	Not illuminate^*6	Illuminates	Not illuminate	Illuminates	Illuminates		×
U3003:16	Illuminates	Illuminates^78	Illuminates	Not illuminate	Illuminates	Illuminates
U3003:17	Illuminates	Illuminates	Illuminates	Not illuminate	Illuminates	Illuminates

*1 :With Tire Pressure Monitoring System (TPMS)

*2 :With Smart City Brake Support (SCBS)

*3 :C: CMDTC self test, D: ODDTC self test

*4 :Illuminates when two wheels or more have a malfunction

*5 :Not illuminate depending on malfunction content

*6 :When power supply voltage is 7.9—9.6 V for 0.7 s or more

*7 :When power supply voltage is 6.0—7.9 V for 0.8 s or more

*8 :When power supply voltage is 6 V or less for 0.05 s or more

Status byte for DTC

• The status byte is the two-digit code (two digits after hyphen (-)) after the seven-digit DTC.

am2zzn00002656

• The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.

• The status byte can be read by performing a CMDTC self test using the Mazda Modular Diagnostic System (M-MDS).

• For details on the status byte, refer to the explanation on the M-MDS when reading the DTC.

Fail-safe function

• When the malfunction detection function determines a malfunction, the corresponding lights illuminates to alert the driver. At this time, the fail-safe function controls as indicated in the fail-safe function table.

Warning

• If EBD control is prohibited, the rear wheels could lock-up before the front wheels. If this occurs, the vehicle could yaw and become unstable. Therefore, always inspect the system immediately if EBD control is prohibited.

Fail-safe function table

×: Control enabled

—: Control disabled

DTC	ABS control	EBD control	TCS control		DSC control	Brake assist control	Vehicle roll prevention function control^*1	Hill Launch Assist (HLA) control	Tire pressure monitoring system (TPMS) control^*2	Smart City Brake Support (SCBS) control^*3	Secondary Collision Reduction (SCR) control^*3	Mazda Radar Cruise Control (MRCC)^*4	Smart Brake Support (SBS)^*4
DTC	ABS control	EBD control	Brake control	Engine control	DSC control	Brake assist control	Vehicle roll prevention function control^*1	Hill Launch Assist (HLA) control	Tire pressure monitoring system (TPMS) control^*2	Smart City Brake Support (SCBS) control^*3	Secondary Collision Reduction (SCR) control^*3	Mazda Radar Cruise Control (MRCC)^*4	Smart Brake Support (SBS)^*4
B10DF:46	×	×	—		—	—	—	—	×	—	—	—	—
B11D4:08	×	×	×		×	×	×	×	×	—	×	×	×
C0001:01	—	—	—		—	—	—	—	×	—	—	—	—
C0002:01
C0003:01
C0004:01
C0010:01
C0011:01
C0014:01
C0015:01
C0018:01
C0019:01
C001C:01
C001D:01
C0020:11	—	×	—		—	—	—	—	×	—	—	—	—
C0020:12
C0020:13
C0020:49							×	×
C0020:71							—	—
C0023:62	×	×	×		×	×	×	×	×	—	×	—	—
C0030:07	—	×^*5	—		—	—	—	—	—	—	—	—	—
C0031:07
C0031:11
C0031:15
C0031:29
C0031:2F
C0031:64
C0033:07	—	×^*5	—		—	—	—	—	—	—	—	—	—
C0034:07
C0034:11
C0034:15
C0034:29
C0034:2F
C0034:64
C0036:07	—	×^*5	—		—	—	—	—	—	—	—	—	—
C0037:07
C0037:11
C0037:15
C0037:29
C0037:2F
C0037:64
C0039:07	—	×^*5	—		—	—	—	—	—	—	—	—	—
C003A:07
C003A:11
C003A:15
C003A:29
C003A:2F
C003A:64
C0040:64	×	×	×		×	—	—	—	—	—	×	×	—
C0044:28	×	×	—^*6		—^*6	—	—^*6	—^*6	—^*6	—^*6	—^*6	—	—
C0044:47												—	—
C0044:49												×	×
C0044:51												—	—
C0044:54	×	×	—		—	—	—	—	—	—	—	—	—
C0044:64	×	×	—		—	—	—	—	—	—	—	—	—
C0044:8F	×	×	—		—	—	—	—	—	—	—	—	—
C0051:62	×	×	—		—	×	×	×	—	—	—	—	—
C0051:64	×	×	—		—	×	×	×	—	—	—	—	—
C0051:67	×	×	—		—	×	×	×	×	—	—	—	—
C0051:85	×	×	—		—	×	×	×	—	—	—	—	—
C0061:28	×	×	—		—	×	×	×	—	—	—	—	—
C0061:54	×	×	—		—	×	×	×	—	—	—	—	—
C0061:64	×	×	—		—	×	×	×	—	—	—	—	—
C0062:28	×	×	×		×	×	—	—	×	×	×	×	×
C0062:54
C0062:64
C0062:76
C0063:28	×	×	—		—	×	×	×	—	—	—	—	—
C0063:54	×	×	—		—	×	×	×	—	—	—	—	—
C0063:64	×	×	—		—	×	×	×	—	—	—	—	—
C006B:00	×	×	—		—	×	×	×	—	—	—	—	—
C0072:68	×	×	—	×	×	×	×	×	×	×	×	×	×
C1031:35	×	×	×		×	×	×	×	—	×	×	×	×
C1031:41
C1031:54
C1031:68
C1109:64	×	×	×		×	×	×	×	×	×	×	×	×
C1A08:1C	×	×	—		—	—	—	—	—	—	—	—	—
P0942:46	×	×	—		—	—	—	—	—	—	—	—	—
P0942:49	—^*6	—^*6	—		—	—	—	—	—	—	—	—	—
U0001:88	—	×	—		—	—	—	—	—	—	—	—	—
U0100:00	—^*6	×	—^*6		—^*6	—^*6	—^*6	—^*6	—^*6	—^*6	—^*6	—	×
U0101:00	×	×	—		—	×	—^*6	—^*6	—	—	—	—	—
U0104:00	×	×	×		×	×	×	×	×	×	×	—	—
U0131:00	×	×	—		—	×	×	×	—	—	—	—	—
U0151:00	×	×	—^*6		—^*6	—^*6	—^*6	—^*6	×	—^*6	—^*6	—^*6	—^*6
U0155:00	—^*6	×	—^*6		—^*6	—^*6	—^*6	—^*6	×	—^*6	—^*6	—^*6	—^*6
U0235:00	×	×	×		×	×	×	×	×	—	×	×	×
U0301:09	×	×	×		×	×	×	×	×	×	×	—	×
U0336:00	×	×	×		×	×	×	×	×	×	—	—	×
U0401:00	×	×	—^*6		—^*6	×	—^*6	—^*6	—^*6	—^*6	—^*6	—^*6	—^*6
U0402:00	×	×	—		—	×	—	—	—	—	—	×	—
U0405:00	×	×	×	×	×	×	×	×	×	×	×	—	—
U0420:00	×	×	—		—	×	×	×	—	—	—	—	—
U0423:00	×	×	×		×	×	×	×	—	—	×	×	×
U0433:00	×	×	×		×	×	×	×	×	—	×	×	×
U0443:00	×	×	×		×	×	×	×	×	—	×	×	—
U0452:86	×	×	—^*6		—^*6	×	—^*6	—^*6	—^*6	—^*6	—^*6	—^*6	—^*6
U0515:00	×	×	×		×	×	×	×	×	×	×	—	×
U2007:46	×	×	—		—	—^*6	—	—	×	—	—	—	—
U2007:62	—	—	—		—	—	—	—	×	—	—	—	—
U2101:00	—	×	—		—	—	—	—	—	—	—	—	—
U2300:52
U2300:54
U2300:55
U2300:56
U2300:64
U3000:49	—	—^*6	—		—	—	—	—	—	—	—	—	—
U3003:08	×	×	×		×	×	×	×	×	×	×	×	×
U3003:16	—	×^*7	—		—	—	—	—	—	—	—	—	—
U3003:16	—	—^89	—		—	—	—	—	—	—	—	—	—
U3003:17	—	—	—		—	—	—	—	—	—	—	—	—

*1 :ATX

*2 :With Tire Pressure Monitoring System (TPMS)

*3 :With Smart City Brake Support (SCBS)

*4 :Vehicles with Mazda Radar Cruise Control (MRCC) and/or Smart Brake Support (SBS)

*5 :Control disabled when two wheels or more have a malfunction

*6 :Enabled depending on malfunction content

*7 :When power supply voltage is 7.9—9.6 V for 0.7 s or more

*8 :When power supply voltage is 6.0—7.9 V for 0.8 s or more

*9 :When power supply voltage is 6 V or less for 0.05 s or more

Snapshot data

• The snapshot data stores the currently detected DTC data.

—: Not applicable

Snapshot data item	Unit	Definition	Data read/use method	Corresponding data monitor items
AAT	°C, °F	Ambient air temperature	—	—
ABS	Inactive/Active	Antilock braking system	—	—
APP_STATUS	Accelerator Pedal Off/ Under 20%/ Over 20%/ FAIL	Accelerator pedal position	—	—
AYC	Inactive/Active	Active yaw control	—	—
BRK_F_P_R	Pa, psi	Brake fluid line hydraulic pressure (raw value)	—	BRK_F_P_R
BTCS	Inactive/Active	Brake traction control system	—	—
CFG_STATUS	Config Complete/ Not Configured/ Config Error	Configuration status	—	—
ECT_STATUS	Under 0 degrees C/ 0 - Under 80 degrees C/ Over 80 degrees C/ FAIL	Engine coolant temperature status	—	—
EDC#1	Inactive/Active	Engine drag control	—	—
IC_VPWR	V	Instrument cluster power supply	• The DSC HU/CM constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the M-MDS.	VPWR^*1
IG-ON_TIMER	hh:mm:ss^*2	Elapsed time since ignition was switched ON Note • The instrument cluster records the elapsed time since the ignition was switched ON.	• The DSC HU/CM constantly receives the elapsed time since the ignition was switched ON sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the elapsed time since the ignition was switched ON when the DTC was detected, and it is displayed in the M-MDS.	—
LAT_ACCL_R	G	Lateral acceleration (raw value)	—	LAT_ACCL_R
LON_ACCL_R	G	Longitudinal acceleration (raw value)	—	LON_ACCL_R
PMP_MT	Off/On	Pump motor	—	PMP_MT
PWR_MODE_KEY	Key Out/Key Recently Out/Key Approved (Position 0)/Post Accessory (Position 0)/Accessory (Position 1)/Post Ignition (Position 1)/Ignition On (Position 2)/Running (Position 2)/Running - Starting In Progress (Position 2)/Crank (Position 3)	• Key Out: Ignition switched off • Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off • Accessory (Position 1): Ignition is switched to ACC • Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON • Ignition On (Position 2): Ignition switched ON (engine off) • Running (Position 2): Ignition switched ON (engine on) • Running - Starting: Cranking condition	• The DSC HU/CM constantly receives the ignition switch status sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.	—
RPM_STATUS	Engine Stop/ Under 1500 rpm/ Over 1500 rpm/ FAIL	Engine RPM status	• The DSC HU/CM constantly receives the ignition switch status sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.	TACHOMTR^*1
SHIFT_STATUS	P/N D/ R/ FAIL	Shift position status	• The DSC HU/CM constantly receives the selector lever position sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the selector lever position when the DTC was detected, and it is displayed in the M-MDS.	—
STR_ANG_C	°	Steering wheel angle (calculated value)	—	STR_ANG_C
TCS	Inactive/Active	Traction control system	—	—
TOTAL_DIST	km, ft, mi	Accumulated total traveled distance from completion of vehicle until DSC HU/CM detects DTC (Odometer value in instrument cluster)	The distance traveled when the DSC HU/CM detected a DTC can be calculated by performing the following procedure. 1. Verify the odometer value in the instrument cluster. 2. Verify the snap shot data item TOTAL_DIST. 3. Subtract 2 from 1.	—
TOTAL_TIME	hh:mm:ss^*2	Accumulated total elapsed time since vehicle completion until DSC HU/CM detects a DTC Note • When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.	The elapsed time when the DSC HU/CM detected a DTC can be calculated by performing the following procedure. 1. Verify the PID item TOTAL_TIME of the instrument cluster. 2. Verify the snap shot data item TOTAL_TIME. 3. Subtract 2 from 1.	TOTAL_TIME^*1
VPWR	V	Power supply	—	VPWR_B_SOL
VSPD	KPH, MPH	Vehicle speed	—	VSPD
VSPD_STATUS	Stop/ 0 - 10 km/h/ Over 10 km/h/ FAIL	Vehicle speed status	• The DSC HU/CM constantly receives the vehicle speed sent via CAN signal from the instrument cluster. • If a DTC is detected, the DSC HU/CM records the vehicle speed when the DTC was detected, and it is displayed in the M-MDS.	SPEEDOMTR^*1
YAW_RATE_R	°/s	Yaw rate (raw value)	—	YAW_RATE_R

*1 :PID for instrument cluster

*2 :Fractions of seconds may be indicated after the decimal point

PID/data monitor function

• The PID/data monitor function is used for optionally selecting input/output signal monitor items preset in the DSC HU/CM and reading them out in real-time.

Monitor item

Unit/Operation

Test condition

Specification (Reference)

M-MDS display

BRAKE_SW

Off/On

Brake pedal released

Off

Brake pedal depressed

On

BRK_F_P_C

Pa, psi

Brake pedal depressed

Changes according to the brake fluid pressure

BRK_F_P_R

Pa, psi

Brake pedal depressed

Changes according to the brake fluid pressure

DDS_MODE

Not_Learned/Learning/Learned

During initialization

Not_Learned

During learning

Learning

Learning completed*

Learned

DSC_OFF_SW

Off/On

DSC OFF switch is released

Off

DSC OFF switch is depressed

On

DSC_ST

Off/On

During DSC OFF mode

Off

Other than DSC OFF mode

On

LAT_ACCL_R

(raw value)

G

Vehicle stopped or driving at constant speed

0 G

Cornering to left

Changes to 0 G—positive

Cornering to right

Changes to 0 G—negative

LON_ACCL_C

(calculated value)

G

Vehicle stopped or driving at constant speed

0 G

Cornering to left

Changes to 0 G—positive

Cornering to right

Changes to 0 G—negative

LON_ACCL_R

(raw value)

G

Vehicle stopped or driving at constant speed

0 G

Cornering to left

Changes to 0 G—positive

Cornering to right

Changes to 0 G—negative

P_BRAKE_SW

Off/On

Parking brake lever released

Off

Parking brake lever pulled

On

PMP_MT

Note

•  Displays in the M-MDS but it does not operate.

PMP_MT_SP

R_GEAR_SW

Off/On

Except shift/selector lever at R position

Off

Shift/selector lever at R position

On

STR_ANG_C

(calculated value)

Note

•  Constantly indicates 0 ° until the steering wheel angle neutral position determination by the DSC HU/CM is completed.

•  The steering wheel angle neutral position determination by the DSC HU/CM is completed when the vehicle is driven in a straight line at a speed of 20 km/h {12 mph} or more for several seconds.

°

Steering wheel in neutral position

0 °

Steered left

Changes to 0 °—positive

Steered right

Changes to 0 °—negative

STR_ANG_R

(raw value)

Note

•  The signal indicated in this item is a steering angle (relative angle) in the EPS control module.

°

Steering wheel position when ignition is switched ON (engine off or on)

0 °

Steered left

Changes to 0 °—positive

Steered right

Changes to 0 °—negative

TPMS_TYPE

No_DDS/DDS/DDS+TOM_O/DDS+TOM_EU/DDS+TOM_US

Tire Pressure Monitoring System (TPMS) not equipped

No_DDS

Tire Pressure Monitoring System (TPMS) equipped (corresponding to regulation)

DS+TOM_O/DDS+TOM_EU/DDS+TOM_US

V_INLET_LF

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_INLET_LR

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_INLET_RF

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_INLET_RR

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_OUTLET_LF

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_OUTLET_LR

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_OUTLET_RF

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_OUTLET_RR

Off/On

Solenoid valve not activated

Off

Solenoid valve activated

On

V_STB_LF/RR

Note

•  Displays in the M-MDS but it does not operate.

V_STB_RF/LR

V_TRC_LF/RR

Note

•  Displays in the M-MDS but it does not operate.

V_TRC_RF/LR

VPWR_B_SOL

V

This PID indicates power supply voltage for DSC HU/CM.

VSPD

KPH, MPH

This PID indicates vehicle speed.

WSPD_SEN_LF

KPH, MPH

This PID indicates vehicle speed.

WSPD_SEN_LR

KPH, MPH

This PID indicates vehicle speed.

WSPD_SEN_RF

KPH, MPH

This PID indicates vehicle speed.

WSPD_SEN_RR

KPH, MPH

This PID indicates vehicle speed.

YAW_RATE_C

(calculated value)

°/s

Vehicle stopped or driving at constant speed

0 °/s

Cornering to left

Changes to 0 °/s—positive

Cornering to right

Changes to 0 °/s—negative

YAW_RATE_R

(raw value)

°/s

Vehicle stopped or driving at constant speed

0 °/s

Cornering to left

Changes to 0 °/s—positive

Cornering to right

Changes to 0 °/s—negative

Monitor item	Unit/Operation	Test condition	Specification (Reference)
BRAKE_SW	Off/On	Brake pedal released	Off
Brake pedal depressed	On
BRK_F_P_C	Pa, psi	Brake pedal depressed	Changes according to the brake fluid pressure
BRK_F_P_R	Pa, psi	Brake pedal depressed	Changes according to the brake fluid pressure
DDS_MODE	Not_Learned/Learning/Learned	During initialization	Not_Learned
During learning	Learning
Learning completed*	Learned
DSC_OFF_SW	Off/On	DSC OFF switch is released	Off
DSC OFF switch is depressed	On
DSC_ST	Off/On	During DSC OFF mode	Off
Other than DSC OFF mode	On
LAT_ACCL_R (raw value)	G	Vehicle stopped or driving at constant speed	0 G
Cornering to left	Changes to 0 G—positive
Cornering to right	Changes to 0 G—negative
LON_ACCL_C (calculated value)	G	Vehicle stopped or driving at constant speed	0 G
Cornering to left	Changes to 0 G—positive
Cornering to right	Changes to 0 G—negative
LON_ACCL_R (raw value)	G	Vehicle stopped or driving at constant speed	0 G
Cornering to left	Changes to 0 G—positive
Cornering to right	Changes to 0 G—negative
P_BRAKE_SW	Off/On	Parking brake lever released	Off
Parking brake lever pulled	On
PMP_MT	Note • Displays in the M-MDS but it does not operate.
PMP_MT_SP
R_GEAR_SW	Off/On	Except shift/selector lever at R position	Off
Shift/selector lever at R position	On
STR_ANG_C (calculated value) Note • Constantly indicates 0 ° until the steering wheel angle neutral position determination by the DSC HU/CM is completed. • The steering wheel angle neutral position determination by the DSC HU/CM is completed when the vehicle is driven in a straight line at a speed of 20 km/h {12 mph} or more for several seconds.	°	Steering wheel in neutral position	0 °
Steered left	Changes to 0 °—positive
Steered right	Changes to 0 °—negative
STR_ANG_R (raw value) Note • The signal indicated in this item is a steering angle (relative angle) in the EPS control module.	°	Steering wheel position when ignition is switched ON (engine off or on)	0 °
Steered left	Changes to 0 °—positive
Steered right	Changes to 0 °—negative
TPMS_TYPE	No_DDS/DDS/DDS+TOM_O/DDS+TOM_EU/DDS+TOM_US	Tire Pressure Monitoring System (TPMS) not equipped	No_DDS
Tire Pressure Monitoring System (TPMS) equipped (corresponding to regulation)	DS+TOM_O/DDS+TOM_EU/DDS+TOM_US
V_INLET_LF	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_INLET_LR	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_INLET_RF	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_INLET_RR	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_OUTLET_LF	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_OUTLET_LR	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_OUTLET_RF	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_OUTLET_RR	Off/On	Solenoid valve not activated	Off
Solenoid valve activated	On
V_STB_LF/RR	Note • Displays in the M-MDS but it does not operate.
V_STB_RF/LR
V_TRC_LF/RR	Note • Displays in the M-MDS but it does not operate.
V_TRC_RF/LR
VPWR_B_SOL	V	This PID indicates power supply voltage for DSC HU/CM.
VSPD	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_LF	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_LR	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_RF	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_RR	KPH, MPH	This PID indicates vehicle speed.
YAW_RATE_C (calculated value)	°/s	Vehicle stopped or driving at constant speed	0 °/s
Cornering to left	Changes to 0 °/s—positive
Cornering to right	Changes to 0 °/s—negative
YAW_RATE_R (raw value)	°/s	Vehicle stopped or driving at constant speed	0 °/s
Cornering to left	Changes to 0 °/s—positive
Cornering to right	Changes to 0 °/s—negative

Simulation function

• The simulation function is used for optionally selecting simulation items of input/output parts preset in the DSC HU/CM, and to operate them regardless of CM control.

• To protect the hydraulic unit interior, operate output related parts for only 2 s or less when using the simulation function.

Simulation item

Output part

Operation

Operating condition

PMP_MT_SP

Pump motor

Off/On

Switch the ignition ON

V_INLET_LF

LF inlet solenoid valve

V_INLET_LR

LR inlet solenoid valve

V_INLET_RF

RF inlet solenoid valve

V_INLET_RR

RR inlet solenoid valve

V_OUTLET_LF

LF outlet solenoid valve

V_OUTLET_LR

LR outlet solenoid valve

V_OUTLET_RF

RF outlet solenoid valve

V_OUTLET_RR

RR outlet solenoid valve

V_STB_LF/RR

LF/RR stability control solenoid valve

Off/On

Switch the ignition ON

V_STB_RF/LR

RF/LR stability control solenoid valve

V_TRC_LF/RR

LF/RR linear control solenoid valve

Off/On

Switch the ignition ON

V_TRC_RF/LR

RF/LR linear control solenoid valve

Simulation item	Output part	Operation	Operating condition
PMP_MT_SP	Pump motor	Off/On	Switch the ignition ON
V_INLET_LF	LF inlet solenoid valve
V_INLET_LR	LR inlet solenoid valve
V_INLET_RF	RF inlet solenoid valve
V_INLET_RR	RR inlet solenoid valve
V_OUTLET_LF	LF outlet solenoid valve
V_OUTLET_LR	LR outlet solenoid valve
V_OUTLET_RF	RF outlet solenoid valve
V_OUTLET_RR	RR outlet solenoid valve
V_STB_LF/RR	LF/RR stability control solenoid valve	Off/On	Switch the ignition ON
V_STB_RF/LR	RF/LR stability control solenoid valve
V_TRC_LF/RR	LF/RR linear control solenoid valve	Off/On	Switch the ignition ON
V_TRC_RF/LR	RF/LR linear control solenoid valve

External tester communication function

• The external tester communication function enables communication of diagnostic data (DTC read-outs, input/output signal read-outs, operation of input/output parts) between the DSC HU/CM and an external tester.

• By connecting the Mazda modular diagnostic system (M-MDS) to the DLC-2, diagnostic data can be sent and received between the Mazda modular diagnostic system (M-MDS) and the DSC HU/CM via CAN lines.

• The DSC HU/CM receives the command signals of the malfunction detection function, PID/data monitor function, and simulation function from the Mazda modular diagnostic system (M-MDS), and sends DTCs and data regarding the operating status of each input/output part to the Mazda modular diagnostic system (M-MDS).

Diagnostic function name

Signal received

Signal sent

Malfunction detection function

DTC verification signal

DTC(s)

PID/data monitor function

Command signal to read selected monitor item

Monitored data for requested monitor item

Simulation function

Operation command signal for selected simulation item

Output part drive signal

Monitor item	Unit/Operation	Test condition	Specification (Reference)
M-MDS display	Unit/Operation	Test condition	Specification (Reference)
BRAKE_SW	Off/On	Brake pedal released	Off
BRAKE_SW	Off/On	Brake pedal depressed	On
BRK_F_P_C	Pa, psi	Brake pedal depressed	Changes according to the brake fluid pressure
BRK_F_P_R	Pa, psi	Brake pedal depressed	Changes according to the brake fluid pressure
DDS_MODE	Not_Learned/Learning/Learned	During initialization	Not_Learned
		During learning	Learning
		Learning completed*	Learned
DSC_OFF_SW	Off/On	DSC OFF switch is released	Off
DSC_OFF_SW	Off/On	DSC OFF switch is depressed	On
DSC_ST	Off/On	During DSC OFF mode	Off
DSC_ST	Off/On	Other than DSC OFF mode	On
LAT_ACCL_R (raw value)	G	Vehicle stopped or driving at constant speed	0 G
		Cornering to left	Changes to 0 G—positive
		Cornering to right	Changes to 0 G—negative
LON_ACCL_C (calculated value)	G	Vehicle stopped or driving at constant speed	0 G
		Cornering to left	Changes to 0 G—positive
		Cornering to right	Changes to 0 G—negative
LON_ACCL_R (raw value)	G	Vehicle stopped or driving at constant speed	0 G
		Cornering to left	Changes to 0 G—positive
		Cornering to right	Changes to 0 G—negative
P_BRAKE_SW	Off/On	Parking brake lever released	Off
P_BRAKE_SW	Off/On	Parking brake lever pulled	On
PMP_MT	Note • Displays in the M-MDS but it does not operate.
PMP_MT_SP	Note • Displays in the M-MDS but it does not operate.
R_GEAR_SW	Off/On	Except shift/selector lever at R position	Off
R_GEAR_SW	Off/On	Shift/selector lever at R position	On
STR_ANG_C (calculated value) Note • Constantly indicates 0 ° until the steering wheel angle neutral position determination by the DSC HU/CM is completed. • The steering wheel angle neutral position determination by the DSC HU/CM is completed when the vehicle is driven in a straight line at a speed of 20 km/h {12 mph} or more for several seconds.	°	Steering wheel in neutral position	0 °
		Steered left	Changes to 0 °—positive
		Steered right	Changes to 0 °—negative
STR_ANG_R (raw value) Note • The signal indicated in this item is a steering angle (relative angle) in the EPS control module.	°	Steering wheel position when ignition is switched ON (engine off or on)	0 °
		Steered left	Changes to 0 °—positive
		Steered right	Changes to 0 °—negative
TPMS_TYPE	No_DDS/DDS/DDS+TOM_O/DDS+TOM_EU/DDS+TOM_US	Tire Pressure Monitoring System (TPMS) not equipped	No_DDS
TPMS_TYPE	No_DDS/DDS/DDS+TOM_O/DDS+TOM_EU/DDS+TOM_US	Tire Pressure Monitoring System (TPMS) equipped (corresponding to regulation)	DS+TOM_O/DDS+TOM_EU/DDS+TOM_US
V_INLET_LF	Off/On	Solenoid valve not activated	Off
V_INLET_LF	Off/On	Solenoid valve activated	On
V_INLET_LR	Off/On	Solenoid valve not activated	Off
V_INLET_LR	Off/On	Solenoid valve activated	On
V_INLET_RF	Off/On	Solenoid valve not activated	Off
V_INLET_RF	Off/On	Solenoid valve activated	On
V_INLET_RR	Off/On	Solenoid valve not activated	Off
V_INLET_RR	Off/On	Solenoid valve activated	On
V_OUTLET_LF	Off/On	Solenoid valve not activated	Off
V_OUTLET_LF	Off/On	Solenoid valve activated	On
V_OUTLET_LR	Off/On	Solenoid valve not activated	Off
V_OUTLET_LR	Off/On	Solenoid valve activated	On
V_OUTLET_RF	Off/On	Solenoid valve not activated	Off
V_OUTLET_RF	Off/On	Solenoid valve activated	On
V_OUTLET_RR	Off/On	Solenoid valve not activated	Off
V_OUTLET_RR	Off/On	Solenoid valve activated	On
V_STB_LF/RR	Note • Displays in the M-MDS but it does not operate.
V_STB_RF/LR	Note • Displays in the M-MDS but it does not operate.
V_TRC_LF/RR	Note • Displays in the M-MDS but it does not operate.
V_TRC_RF/LR	Note • Displays in the M-MDS but it does not operate.
VPWR_B_SOL	V	This PID indicates power supply voltage for DSC HU/CM.
VSPD	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_LF	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_LR	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_RF	KPH, MPH	This PID indicates vehicle speed.
WSPD_SEN_RR	KPH, MPH	This PID indicates vehicle speed.
YAW_RATE_C (calculated value)	°/s	Vehicle stopped or driving at constant speed	0 °/s
		Cornering to left	Changes to 0 °/s—positive
		Cornering to right	Changes to 0 °/s—negative
YAW_RATE_R (raw value)	°/s	Vehicle stopped or driving at constant speed	0 °/s
		Cornering to left	Changes to 0 °/s—positive
		Cornering to right	Changes to 0 °/s—negative

Diagnostic function name	Signal received	Signal sent
Malfunction detection function	DTC verification signal	DTC(s)
PID/data monitor function	Command signal to read selected monitor item	Monitored data for requested monitor item
Simulation function	Operation command signal for selected simulation item	Output part drive signal
